Part Number # TVF14-250FD-XV
SKU # 2383192
Image Disclaimers Message
TVF14-250FD-XV

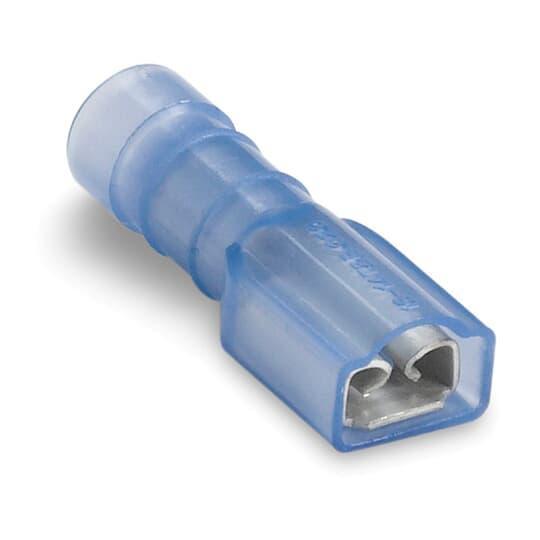

Thomas & Betts TVF14-250FD-XV Sta-Kon Female Disconnect
Part Number # TVF14-250FD-XV
SKU # 2383192
$25.55 / 75Each
Thomas & Betts TVF14-250FD-XV Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | TVF14-250FD-XV |
| SKU #: | 2383192 |
| Barrel Type: | Funnel Entry/Internal Serration/Long |
| Conductor Size: | 16 to 14, 16 to 14 AWG |
| Dimensions: | 0.26 in W x 0.016 in THK |
| Finish: | Tin Plated |
| Insulated: | Fully Insulated |
| Specifications: | 0.15 in Dia Barrel, Vinyl Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Terminal Type: | Crimp |
| Color: | Blue |
| Country of origin: | TW |
| Material: | Brass/Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121447 |
| UPC: | 00728494144702 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$25.55 / 75Each
Quantity:
- Catamount Female Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Funnel Entry/Internal Serration/Long Barrel, Crimp Terminal, 300 V, 0.15 in Dia Barrel, Vinyl Insulation, 105 deg C, Brass/Copper, Blue, Tin Plated, 0.26 in W x 0.016 in THK, Insulated: Fully Insulated
TVF14-250FD-XV Item Features
- Vinyl insulated
- Molded insulator
- Metal insulation sleeve
- Suitable for use with WT112M, CM2000A tools
TVF14-250FD-XV Standards
UL94 V-0 Flammability Rated|UL File No. E66716SKU #2383192Part Number #TVF14-250FD-XVUNSPSC39121447UPC00728494144702
