Part Number # TY3X4WHW6
SKU # 2243338
Image Disclaimers Message
TY3X4WHW6

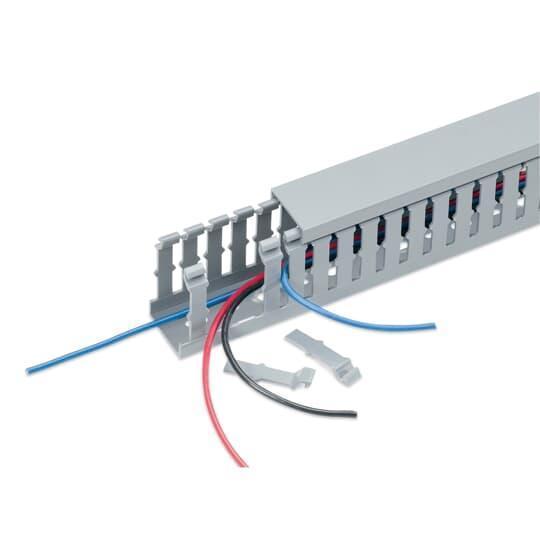

Thomas & Betts TY3X4WHW6 Ty-Duct Wiring Duct
Part Number # TY3X4WHW6
SKU # 2243338
$2602.20 / 60Each
Typical price:$3487.20 / Each
Thomas & Betts TY3X4WHW6 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | TY3X4WHW6 |
| SKU #: | 2243338 |
| Adhesive Backed: | No |
| Slot Size: | 3 x 4, 3 x 4 in |
| Slot Type: | Wide |
| Type: | Halogen-Free |
| Color: | White |
| Country of origin: | US |
| Depth: | 4.46, 4.46 in |
| Length: | 6, 6 ft |
| Material: | PPE |
| Width: | 3-1/4, 3-1/4 in |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131712 |
| UPC: | 00786209884794 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2602.20 / 60Each
Typical price:$3487.20 / Each
Quantity:
- Ty-Duct Wiring Duct, Halogen-Free, 3-1/4 in Width, 4.46 in Depth, 6 ft Length, Wide Slot, 3 x 4 in Slot, No Adhesive Backed, PPE, White
TY3X4WHW6 Application
Indoor ApplicationsTY3X4WHW6 Item Features
- Higher temperature rating than PVC
- Wide fingers and slots increase rigidity and enable easier insertion of wiring bundles
- V-Shaped slot lead-in enables easier and faster wire installation
- Rounded edges keep hands and wires free of abrasion
- UL94 recognized for use in temperatures up to 203 deg F
- Non-slip cover does not slide easily and resists vibration
- Flush cover attaches flush with sidewall for finished look
- Dual score lines are designed to yield clean breakoffs at the base of the slot and the duct
- Versatile North American and DIN standard mounting holes enable same duct for multiple applications
- 20% lighter than PVC
TY3X4WHW6 Standards
CE Certified|CSA Certified|UL ListedSKU #2243338Part Number #TY3X4WHW6UNSPSC39131712UPC00786209884794
