Part Number # TYD2X4NPG6
SKU # 2327455
Image Disclaimers Message
Brand: Thomas & Betts
TYD2X4NPG6

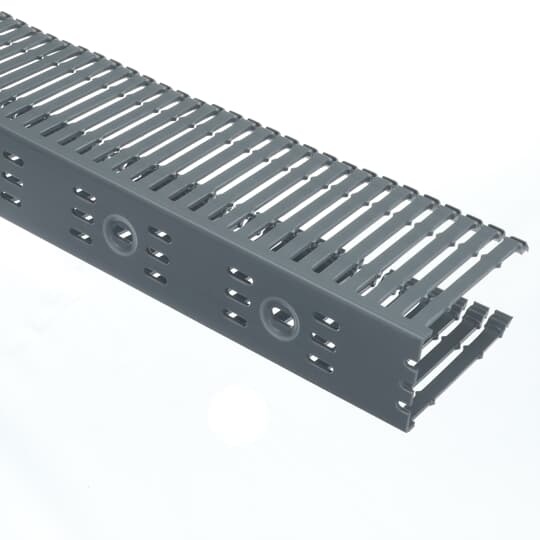

Thomas & Betts TYD2X4NPG6 Ty-Duct Wiring Duct
Part Number # TYD2X4NPG6
SKU # 2327455
$83.58 / 6Feet
Thomas & Betts TYD2X4NPG6 Key Features
Brand: | Thomas & Betts |
---|---|
Part Number # : | TYD2X4NPG6 |
SKU #: | 2327455 |
Adhesive Backed: | No |
Slot Size: | 3.49 in H x 0.2 in W |
Slot Type: | Narrow |
Color: | Gray |
Country of origin: | US |
Depth: | 4, 4 in |
Length: | 6, 6 ft |
Material: | Flame Retardant PVC |
Mounting type: | Threaded |
Width: | 2, 2 in |
Manufacturer Name: | ABB |
UNSPSC: | 39131712 |
UPC: | 00786210092072 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$83.58 / 6Feet
Quantity:
Thomas & Betts TYD2X4NPG6 Ty-Duct Wiring Duct
Brand: Thomas & Betts
Part Number: TYD2X4NPG6
Ty-Duct Wiring Duct, 2 in Width, 4 in D, 6 ft Length, Narrow Slot, 2 x 4 in Slot, Flush/Threaded Mount, No Adhesive Backed, PVC, Gray
Additional Description: TB -TYD2X4NPG6 2X4 NARROW SLOT GRAY DUCT
Catalog Description: Wiring Duct Narrow Slot, 2 Inches x 4 Inches, Gray PVC
TYD2X4NPG6 Item Features
- Higher number of smaller fingers for more concise harnessing
- Non-slip cover does not slide easily and resists vibration
- Rounded edges protect hands and wires
- V-shaped slot lead-in enables easier and faster wire installation
- Restricted slot design ensures that wires are held with or without the cover inserted
- Cover attaches flush with sidewall for finished look
- Dual score lines are designed to yield clean break offs at the base of the slot and the duct
- Finger design restricts wire from slipping along the edge
- Creates two or three levels of wire service
- Integrated mounting holes larger sizes include staggered holes for mounting flexibility
- Lead free construction
- Designed to fit the spacing of high density terminal blocks
TYD2X4NPG6 Standards
CE Marked|CSA Certified|UR Listed|NFPA-79-2002|UL 508/UL 508A|DIN 43 659|JIC Certified|UL94V-0 Flammability RatingSKU #2327455Part Number #TYD2X4NPG6UNSPSC39131712UPC00786210092072
