UNF205-B

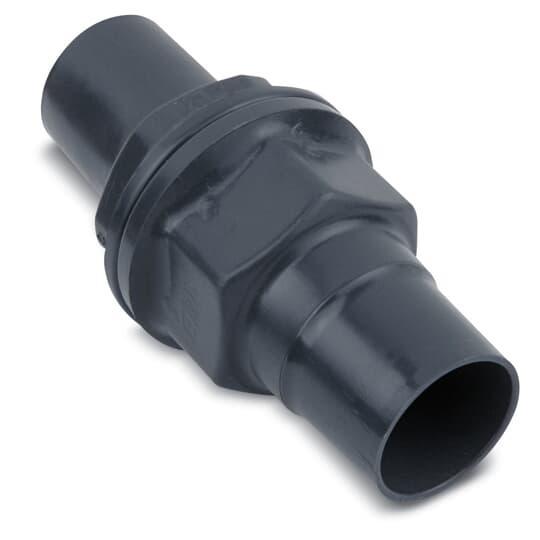

Thomas & Betts UNF205-B Ocal OCAL-BLUE Explosionproof Conduit Union
Part Number # UNF205-B
SKU # 2151503
Thomas & Betts UNF205-B Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | UNF205-B |
| SKU #: | 2151503 |
| Dimensions: | 1.81 in OD x 2.13 in L |
| Finish: | Electro Galvanized |
| Series: | UNF |
| Size: | 3/4, 3/4 in |
| Suitable For Use With: | Conduit Fittings |
| Type: | 3-Piece Dust-Ignitionproof Female |
| Color: | Light blue |
| Country of origin: | US |
| Material: | Steel |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131707 |
| UPC: | 00704508412906 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts UNF205-B Ocal OCAL-BLUE Explosionproof Conduit Union
Brand: Thomas & Betts
Part Number: UNF205-B
Ocal OCAL-BLUE Explosionproof Conduit Union, 3-Piece Dust-Ignitionproof Female, Series: UNF, 3/4 in Size, For Use With: Conduit Fittings, Steel, Light Blue, Electro Galvanized, 1.81 in OD x 2.13 in L Dimensions
Additional Description: TB -UNF205-B (N) PVC CTD UNF FEM UNION 3/4IN LBLUE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: PVC Coated Explosion and Dust-Ignition Proof UNF Female Union, Pipe Size 3/4 Inch/21 Metric, 3 Piece, for Hazardous and Non-hazardous Locations, Overall Length 2.13 Inch/54.10 Millimeters, Overall Diameter 1.81 Inch/45.97 Millimeters, Electrogalvanized Steel, Light Blue
UNF205-B Application
For connecting conduit to conduit or to provide a means for future modification of the conduit system, hazardous and non-hazardous locationsUNF205-B Item Features
- Install in threaded thick wall conduit systems in hazardous areas
- Pressure sealing sleeves protect connections
- Use UNF female unions to connect conduit to conduit or to provide means for future modifications to the conduit system
- Compact design which permits assembly with a minimum of clearance to other adjacent conduit and/or equipment
- Double coated with a nominal 0.002 in blue urethane on both the interior and exterior before PVC coating is applied
UNF205-B Standards
UL 1203|CSA Certified|Class 1 Div 1 and 2 Group A B C D|Class 11 Div 1 Group E F G|Class 111 Div 1 and 2SKU #2151503Part Number #UNF205-BUNSPSC39131707UPC00704508412906
