UNY205-G

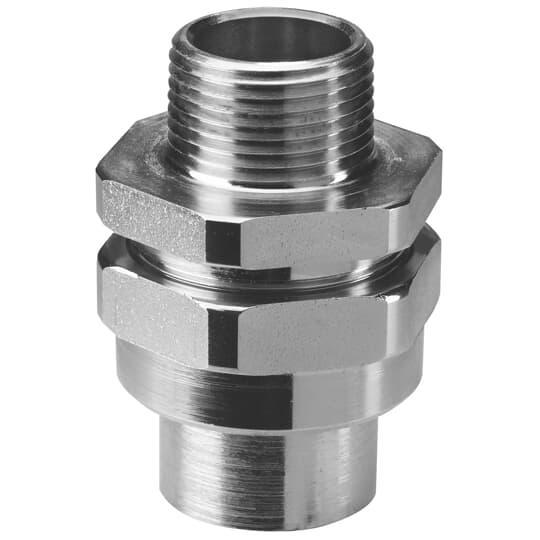

Thomas & Betts UNY205-G Ocal OCAL-BLUE Explosionproof Conduit Union
Part Number # UNY205-G
SKU # 970375
Thomas & Betts UNY205-G Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | UNY205-G |
| SKU #: | 970375 |
| Dimensions: | 1.81 in OD x 2.44 in L |
| Finish: | Electro Galvanized |
| Series: | UNY |
| Size: | 3/4, 3/4 in |
| Suitable For Use With: | Conduit Fittings |
| Type: | 3-Piece Dust-Ignitionproof Male |
| Color: | Gray |
| Country of origin: | US |
| Material: | Steel |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131707 |
| UPC: | 00704508413859 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts UNY205-G Ocal OCAL-BLUE Explosionproof Conduit Union
Brand: Thomas & Betts
Part Number: UNY205-G
Ocal OCAL-BLUE Explosionproof Conduit Union, 3-Piece Dust-Ignitionproof Male, Series: UNY, 3/4 in Size, For Use With: Conduit Fittings, Steel, Gray, Electro Galvanized, 1.81 in OD x 2.44 in L Dimensions
Additional Description: TB -UNY205-G PVC CTD UNY MALE UNION 3/4IN GRAY
Catalog Description: PVC Coated Explosion and Dust-Ignition Proof UNY Male Union, Pipe Size 3/4 Inch/21 Metric, 3 Piece, for Hazardous and Non-hazardous Locations, Overall Length 2.44 Inch/61.98 Millimeters, Overall Diameter 1.81 Inch/45.97 Millimeters, Electrogalvanized Steel, Gray
UNY205-G Application
For connecting conduit to conduit or to provide a means for future modification of the conduit system, hazardous and non hazardous locationsUNY205-G Item Features
- Install in threaded thick wall conduit systems in hazardous areas
- Pressure sealing sleeves protect connections
- Use UNY male unions to connect conduit to a conduit fitting, junction box or device enclosure
- Compact design which permits assembly with a minimum of clearance to other adjacent conduit and/or equipment
- Double coated with a nominal 0.002 in blue urethane on both the interior and exterior before PVC coating is applied
UNY205-G Standards
UL 1203|CSA Certified|Class 1 Div 1 and 2 Group A B C D|Class 11 Div 1 Group E F G|Class 111 Div 1 and 2SKU #970375Part Number #UNY205-GUNSPSC39131707UPC00704508413859
