Thomas & Betts X27SA Conduit Body

2348444 MFG #: X27SA
$43.52 / EA
Usually Ships within 5-8 Days
  • Capacity: 10.3

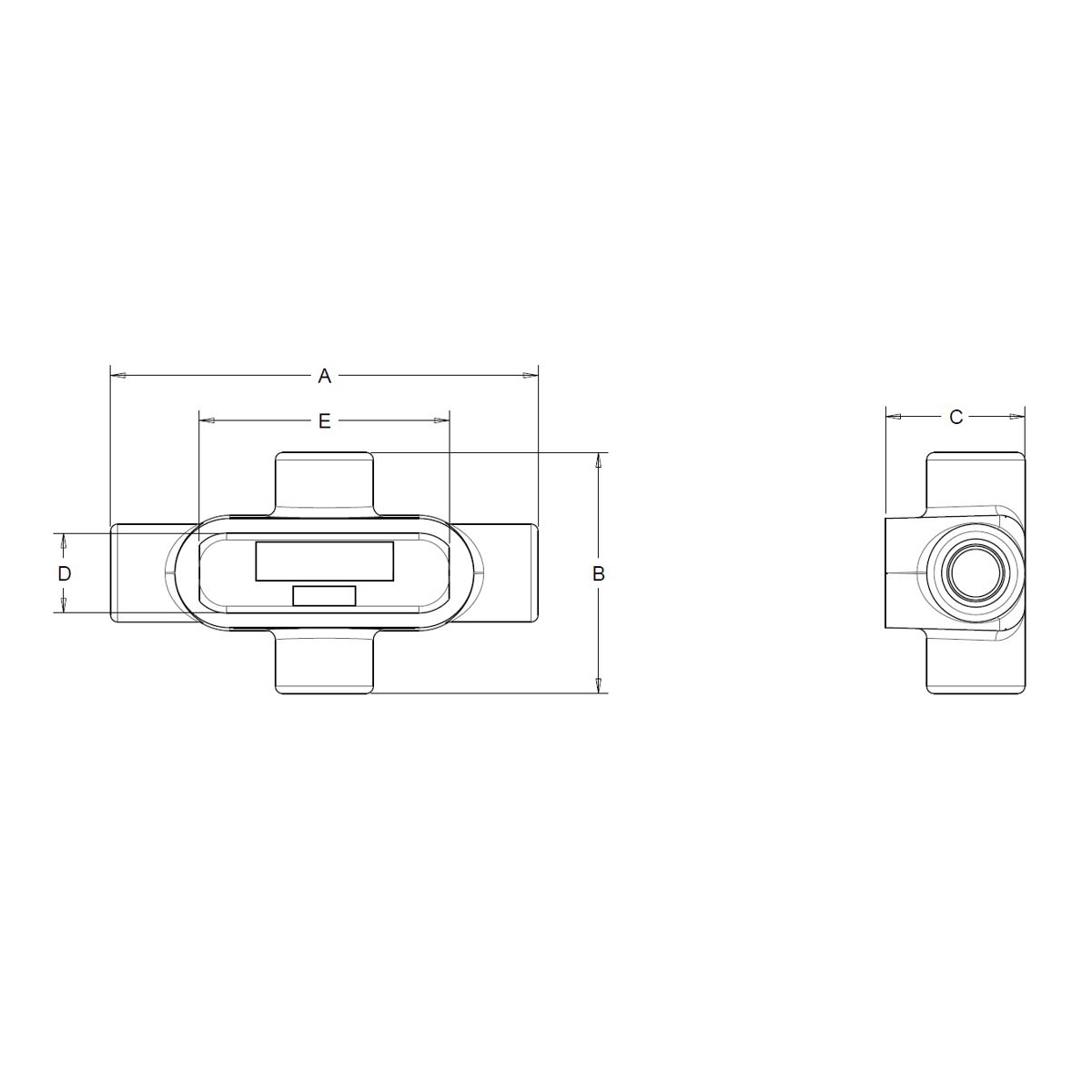

  • Dimensions: 3-7/16 in H x 6-5/32 in W x 2 in D
  • Form: 7
  • Hub Size: 3/4
  • Type: Type X
  • Connection type: Tapered/NPT
  • Material: Sand Cast Aluminum Alloy

Thomas & Betts X27SA Conduit Body

T&B® Conduit Body, Type X, 3/4 in Hub, 4 Hubs, 10.3 cu-in, Form 7, Tapered NPT, Sand Cast Aluminum Alloy, 6-5/32 in W x 2 in D x 3-7/16 in H

Additional Description: TB -X27SA (N) 3/4 IN CONDUIT BODY, ALUM, X, FM7 NON-CANCELABLE, NON-RETURNABLE

Catalog Description: 3/4 Inch Conduit Body, X Shape, Form 7, For Use with Rigid/IMC Conduit, UL Standard, CSA Compliant, Fed Spec W-C-586D, Sand-Cast Aluminum Alloy

  • Specifications
  • Special aluminum alloy provides superior corrosion resistance as cast
  • No protective coatings needed
  • Standard features include tapered NPT threads and integral bushings to protect wire insulation
  • Conduit bodies and covers are interchangeable with Crouse-Hinds, Appleton® and O-Z/Gedney form 7 conduit bodies
  • Act as pull outlets when conductors are being installed
  • Provide easy access for splices in branch conductors
  • Make 90 deg bends in conduit runs
  • Provide access to conductors for maintenance and future system changes
