XD4-TB

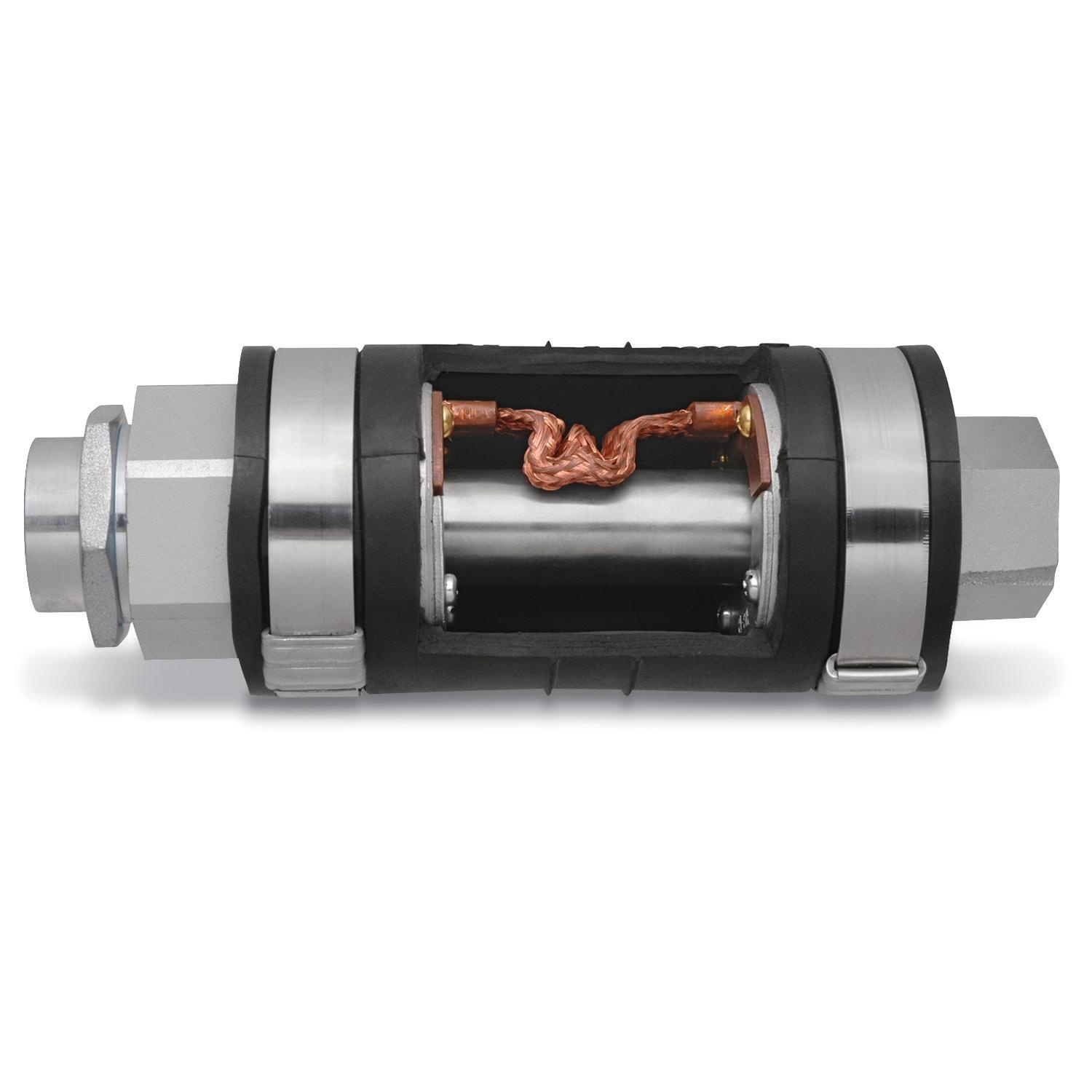

Thomas & Betts XD4-TB Expansion/Deflection Coupling
Part Number # XD4-TB
SKU # 2319845
$589.24 / Each
Typical price:$789.58 / Each
Thomas & Betts XD4-TB Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | XD4-TB |
| SKU #: | 2319845 |
| Angle: | 30, 30 deg |
| Finish: | Electro-Zinc Plated, Electroplated Zinc |
| Series: | XD Series |
| Size: | 1-1/4, 1-1/4 in |
| Suitable For Use With: | Rigid Conduits |
| Country of origin: | CN |
| Material: | Ductile Cast Iron |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131707 |
| UPC: | 00786209894144 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$589.24 / Each
Typical price:$789.58 / Each
Quantity:
Thomas & Betts XD4-TB Expansion/Deflection Coupling
Brand: Thomas & Betts
Part Number: XD4-TB
T&B Expansion/Deflection Coupling, Series: XD Series, 1-1/4 in, For Use With: Rigid Conduits, 30 deg, Ductile Cast Iron, Electro-Zinc Plated
Additional Description: TB -XD4-TB 1 1/4 INCH EXP/DEFL COUPLING
Catalog Description: 1-1/4 Inch XD Cast Iron Expansion/Deflection Coupling with Electro Zinc Plating
XD4-TB Application
Bridges, Tunnels, Inter-building Walkways, Docks and Piers, Wastewater and Water Treatment Facilities ApplicationsXD4-TB Item Features
- Accommodates axial expansion/contraction up to 3/4 in
- Parallel deflection up to 3/4 in
- Angular misalignment up to 30 deg
- Watertight flexible neoprene outer jacket, zinc plated and acrylic painted hubs and stainless steel Tamper proof straps ensure superior corrosion resistance, ideal for use in harsh environment
- Copper ground mounting plates and internal grounding bonding jumper both entirely enclosed to safeguard against theft
- Includes an Erickson type conduit union for faster, easier installation to reduce labor costs
- Durable stainless steel inner sleeve provides a constant, smooth inner diameter in any position to ease wire pulling and protect wire insulation from damage
- NPT threaded hubs fit standard threaded rigid metal conduit
XD4-TB Standards
CSA C22.2 File No. 18.3|UL 514B|UL File No. E23018SKU #2319845Part Number #XD4-TBUNSPSC39131707UPC00786209894144
