Part Number # XR90G-70BR.30
SKU # 2428209
Image provided may only be a representation of
final product and may include optional equipment
XR90G-70BR.30

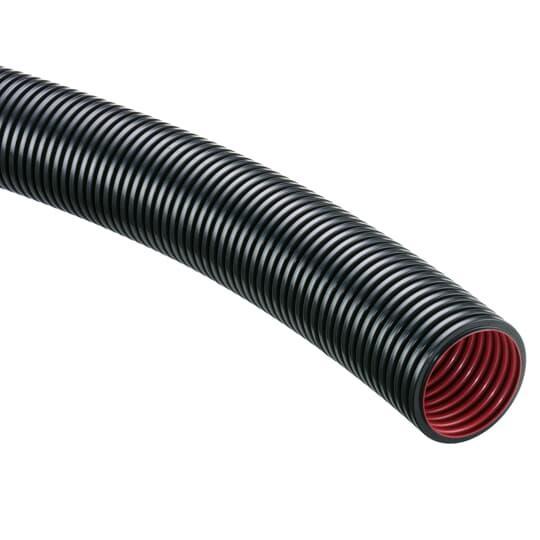

Thomas & Betts XR90G-70BR.30 Pma Corrugated Wall Conduit
Part Number # XR90G-70BR.30
SKU # 2428209
Thomas & Betts XR90G-70BR.30 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | XR90G-70BR.30 |
| SKU #: | 2428209 |
| Inside Diameter: | 67.4 mm |
| Outside Diameter: | 79.8 mm |
| Temperature Rating (Degrees F): | -40 to 95 deg C |
| Trade Size: | NW70 |
| Type: | Type R90 3-Layer Medium-Duty |
| Country of origin: | CH |
| Length: | 30 m |
| Material: | Polyamide 12 |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131706 |
| UPC: | 00786210066424 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts XR90G-70BR.30 Pma Corrugated Wall Conduit
Brand: Thomas & Betts
Part Number: XR90G-70BR.30
PMA Corrugated Wall Conduit, Type R90 3-Layer Medium-Duty, NW70, 67.4 mm Inside Dia, 79.8 mm Outside Dia, 30 m Length, 350 mm Bend Radius, Very Highly Flexible Flexibility, -40 to 95 deg C, Polyamide 12, Black/Red/Yellow
Additional Description: TB -XR90G-70BR.30 (N) CONDUIT 3LAYR PA12 NW70 BLK/YEL/RED NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Three Layer Corrugated Very Flexible, Medium-Duty Conduit, Size NW70/80 Metric, 150 Millimeter Static Radius, 350 Millimeter Dynamic Radius, Polyamide 12, Outer Layer Black, Intermediate Layer Yellow, Inner Layer Red
XR90G-70BR.30 Application
For dynamically moving conduit systems in robotics and automation industryXR90G-70BR.30 Item Features
- Aluminum non-jacketed flexible metal conduits, also known as heavy wall flex are used in many universal wiring applications
- Heavy gauge aluminum housing
- https://youtu.be/yHpzccGbvIU
XR90G-70BR.30 Standards
BAA Compliant|CSA C22.2 File No 227.3|DIN 53474|REACH Compliant|UL 1696SKU #2428209Part Number #XR90G-70BR.30UNSPSC39131706UPC00786210066424
