Tork 300T-2 Mechanical Connectors

Additional Description: TORK-300T-2 (N) Nema Panel Lug (3) 350-6 NON-CANCELABLE, NON-RETURNABLE

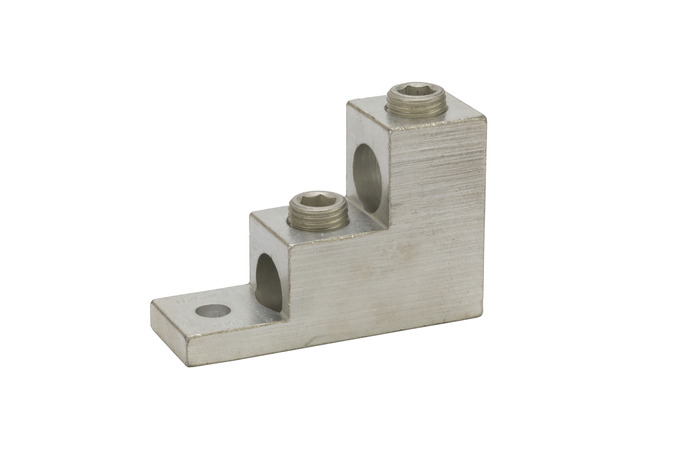

Catalog Description: 2 Port Stacked Lug 300 MCM - 6 AWG Stacked Lugs are large size set screw connectors with wire holes stacked on top of each other to minimize the width of the connector. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts (2000V max. per UL486B). UL486A/B Listed. Temperature rating 90 degrees C. Mounting hole spacing is NEMA standard of 1.75".
