Part Number # 2000-1307
SKU # 2212283
2000-1307

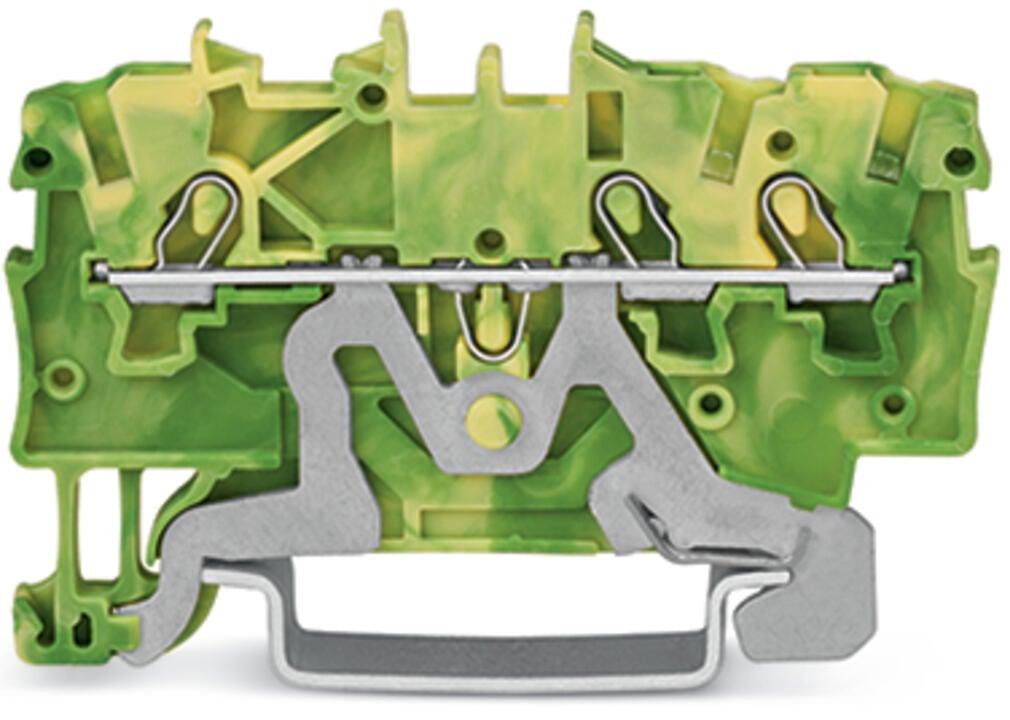

WAGO 2000-1307 TOPJOB S ground terminal block
Part Number # 2000-1307
SKU # 2212283
Wago 2000-1307 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2000-1307 |
| SKU #: | 2212283 |
| Dimensions: | 2.291 in H x 0.138 in W x 1.295 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 24 to 16 AWG |
| Actuation type: | Push-in || Operating tool |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | CN |
| Depth: | 58.2 mm / 2.291 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 1 mm² |
| Solid conductor: | 0.14 … 1.5 mm² / 24 … 16 AWG |
| Total number of connection points: | 3 |
| Weight: | 6.478 g |
| Width: | 3.5 mm / 0.138 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454966904 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2000-1307 TOPJOB S ground terminal block
Brand: Wago
Part Number: 2000-1307
Additional Description: WAGO-2000-1307 3-CONDUCTOR GROUND TERMINAL BLOCK; 1 MM; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 1,00 MM; GREEN-YELLOW 51221384 1 MM ; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND MM ; GREEN-YELLOW 51221384
Catalog Description: 3-conductor ground terminal block; 1 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,00 mm²; green-yellow
2000-1307 Application
Suitable for Ex e II applications2000-1307 Standards
IEC/EN 60947-7-2|RoHS CompliantSKU #2212283Part Number #2000-1307UNSPSC39121410UPC04045454966904
Image provided may only be a representation of final product and may include optional equipment
