2000-1404

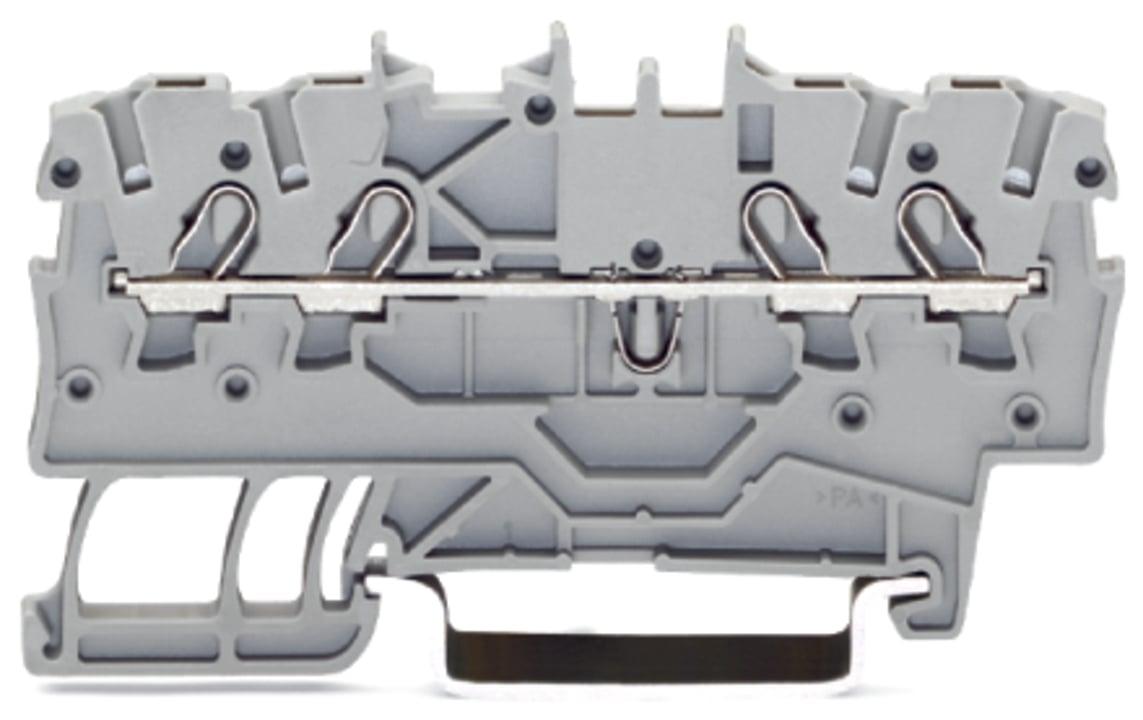

WAGO 2000-1404 TOPJOB S feedthrough terminal block
Part Number # 2000-1404
SKU # 2225190
Wago 2000-1404 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2000-1404 |
| SKU #: | 2225190 |
| Amperage Rating: | 13.5 A |
| Dimensions: | 2.673 in H x 0.138 in W x 1.555 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 24 to 16 AWG |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Blue |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CN |
| Depth: | 67.9 mm / 2.673 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 1 mm² |
| Rated current: | 13.5 A |
| Solid conductor: | 0.14 … 1.5 mm² / 24 … 16 AWG |
| Total number of connection points: | 4 |
| Weight: | 5.140 g |
| Width: | 3.5 mm / 0.138 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454966959 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2000-1404 TOPJOB S feedthrough terminal block
Brand: Wago
Part Number: 2000-1404
Additional Description: WAGO-2000-1404 4-CONDUCTOR THROUGH TERMINAL BLOCK; 1 MM; FOR EX E II AND EX I APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 1,00 MM; BLUE 51221389 1 MM ; FOR EX E II AND EX I APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 1,00 MM ; BLUE 51221389
Catalog Description: 4-conductor through terminal block; 1 mm²; for Ex e II and Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,00 mm²; blue
2000-1404 Standards
CSA 22.2 No 158|ATEX: PTB 11 ATEX 1041 U / IECEx: PTB 11.0093U (Ex eb IIC Gb)|RoHS CompliantSKU #2225190Part Number #2000-1404UNSPSC39121410UPC04045454966959
