Part Number # 2000-2208
SKU # 2344464
Image Disclaimers Message
2000-2208

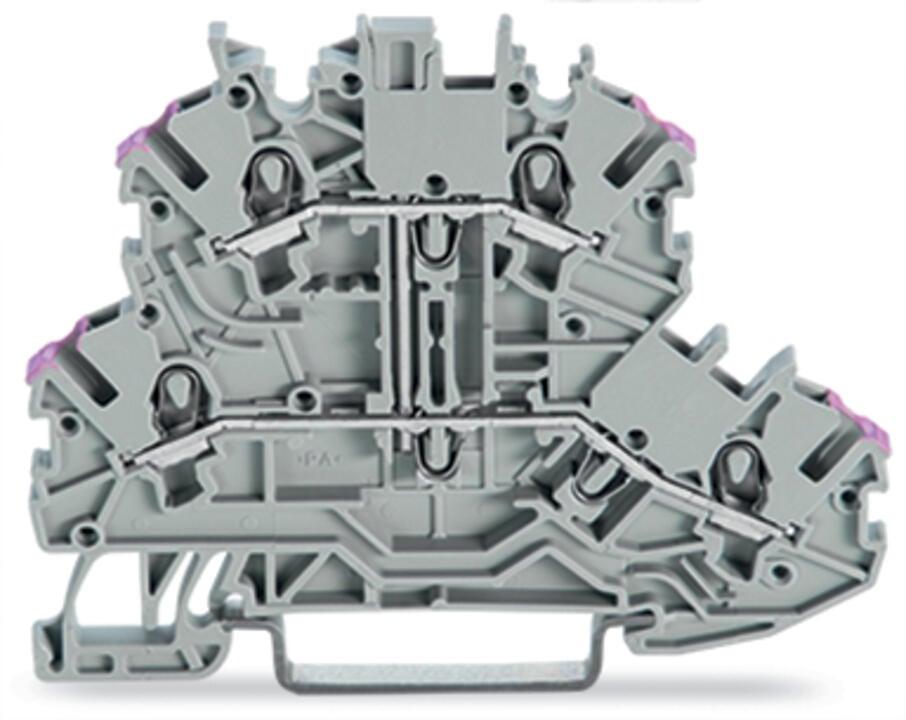

WAGO 2000-2208 TOPJOB S double-deck terminal block
Part Number # 2000-2208
SKU # 2344464
$6.52 / Each
Typical price:$7.06 / Each
Wago 2000-2208 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2000-2208 |
| SKU #: | 2344464 |
| Amperage Rating: | 13.5 A |
| Dimensions: | 2.744 in H x 0.138 in W x 2.035 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 24 to 16 AWG |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CN |
| Depth: | 69.7 mm / 2.744 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 1 mm² |
| Potential marking: | L |
| Rated current: | 13.5 A |
| Solid conductor: | 0.14 … 1.5 mm² / 24 … 16 AWG |
| Total number of connection points: | 4 |
| Weight: | 7.690 g |
| Width: | 3.5 mm / 0.138 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143267670 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6.52 / Each
Typical price:$7.06 / Each
Quantity:
- WAGO, 2000-2208, Deck Terminal Block, Operating Tool, 500 V, 13.5 A, 1 Pole, 24 to 16 AWG Wire, 0.35 to 0.43 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, Polyamide, Gray, 2.744 in H x 0.138 in W x 2.035 in D Dimensions
2000-2208 Standards
CSA 22.2 No 158|ATEX: PTB 11 ATEX 1041 U / IECEx: PTB 11.0093U (Ex eb IIC Gb)|RoHS CompliantSKU #2344464Part Number #2000-2208UNSPSC39121410UPC04055143267670
