Part Number # 2000-2237
SKU # 2316943
Image provided may only be a representation of
final product and may include optional equipment
2000-2237

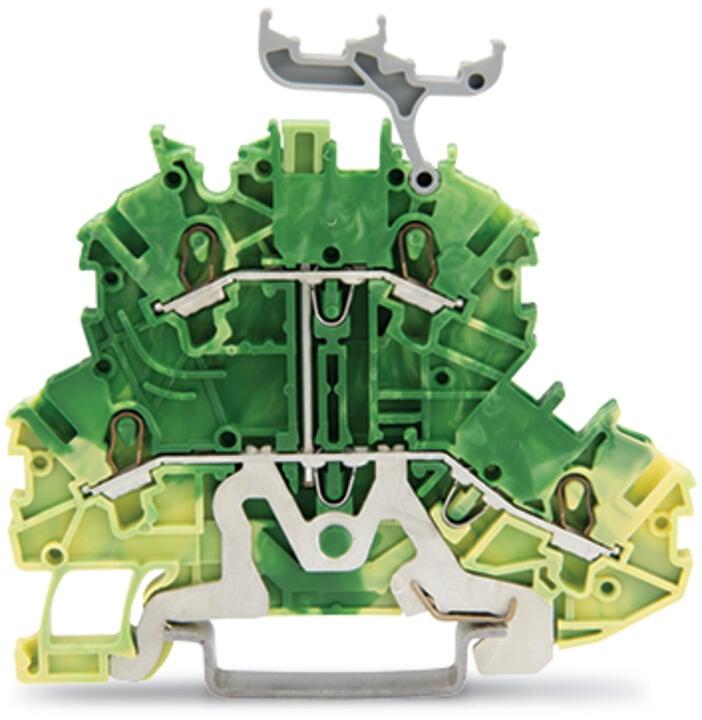

WAGO 2000-2237 TOPJOB S double-deck ground terminal block
Part Number # 2000-2237
SKU # 2316943
$12.92 / Each
Typical price:$14.00 / Each
Wago 2000-2237 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2000-2237 |
| SKU #: | 2316943 |
| Dimensions: | 2.744 in H x 0.138 in W x 2.433 in D |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 24 to 16 AWG |
| Actuation type: | Push-in || Operating tool |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | CN |
| Depth: | 69.7 mm / 2.744 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 1 mm² |
| Potential marking: | PE |
| Solid conductor: | 0.14 … 1.5 mm² / 24 … 16 AWG |
| Total number of connection points: | 4 |
| Weight: | 10.080 g |
| Width: | 3.5 mm / 0.138 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143251440 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$12.92 / Each
Typical price:$14.00 / Each
Quantity:
WAGO 2000-2237 TOPJOB S double-deck ground terminal block
Brand: Wago
Part Number: 2000-2237
Additional Description: WAGO-2000-2237 DOUBLE-DECK TERMINAL BLOCK 20002237
Catalog Description: Double-deck terminal block; 4-conductor ground terminal block; 1 mm²; PE; internal commoning; with marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,00 mm²; green-yellow
2000-2237 Standards
ATEX: PTB 11 ATEX 1041 U / IECEx: PTB 11.0093U (Ex eb IIC Gb)|RoHS CompliantSKU #2316943Part Number #2000-2237UNSPSC39121410UPC04055143251440
