2000-5311/1102-950

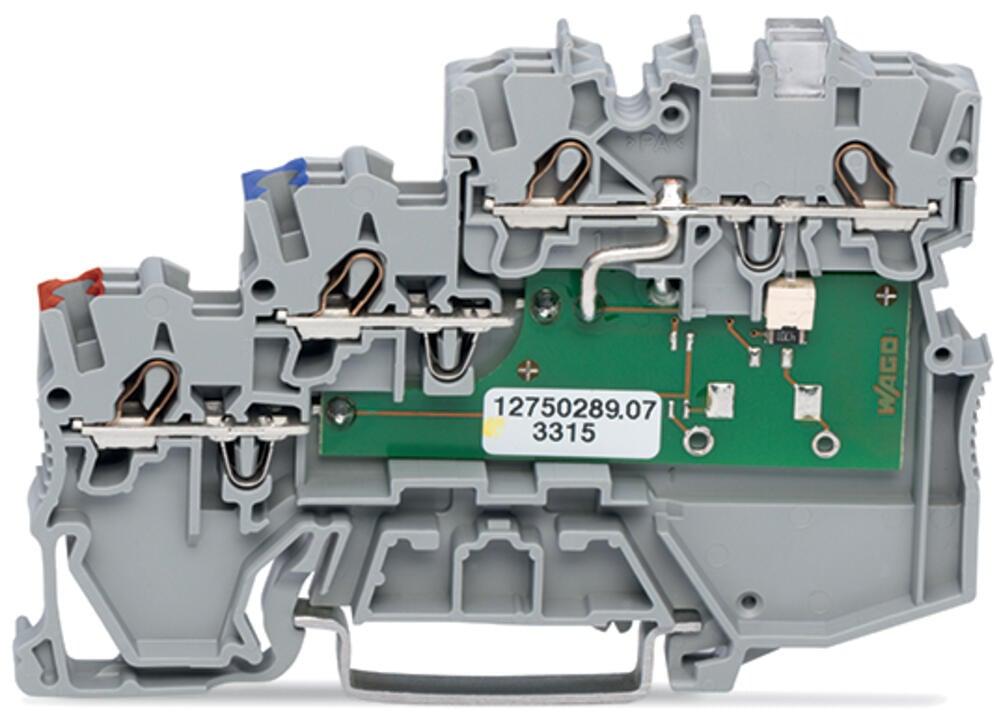

WAGO 2000-5311/1102-950 TOPJOB S sensor LED terminal block
Part Number # 2000-5311/1102-950
SKU # 2327238
$25.11 / Each
Typical price:$27.20 / Each
Wago 2000-5311/1102-950 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2000-5311/1102-950 |
| SKU #: | 2327238 |
| Amperage Rating: | 13.5 A |
| Dimensions: | 3.193 in H x 0.276 in W x 2.063 in D |
| Number of Poles: | 4 |
| Type: | Operating Tool |
| Wire Size: | 20 to 16 AWG |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 81.1 mm / 3.193 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 1 mm² |
| Rated current: | 13.5 A |
| Solid conductor: | 0.14 … 1.5 mm² / 24 … 16 AWG |
| Total number of connection points: | 8 |
| Weight: | 16.792 g |
| Width: | 7 mm / 0.276 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143452892 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$25.11 / Each
Typical price:$27.20 / Each
Quantity:
- WAGO, 2000-5311/1102-950, Sensor Terminal Block, Operating Tool, 24 V DC, 13.5 A, 4 Pole, 20 to 16 AWG Wire, 0.35 to 0.43 in Wire Strip Length, DIN Rail Mounting, Push-In Connection, Polyamide, Gray, 3.193 in H x 0.276 in W x 2.063 in D Dimensions
2000-5311/1102-950 Standards
CSA 22.2 No 158|IEC/EN 60947-7-1|RoHS CompliantSKU #2327238Part Number #2000-5311/1102-950UNSPSC39121410UPC04055143452892
