2000-5317/102-000

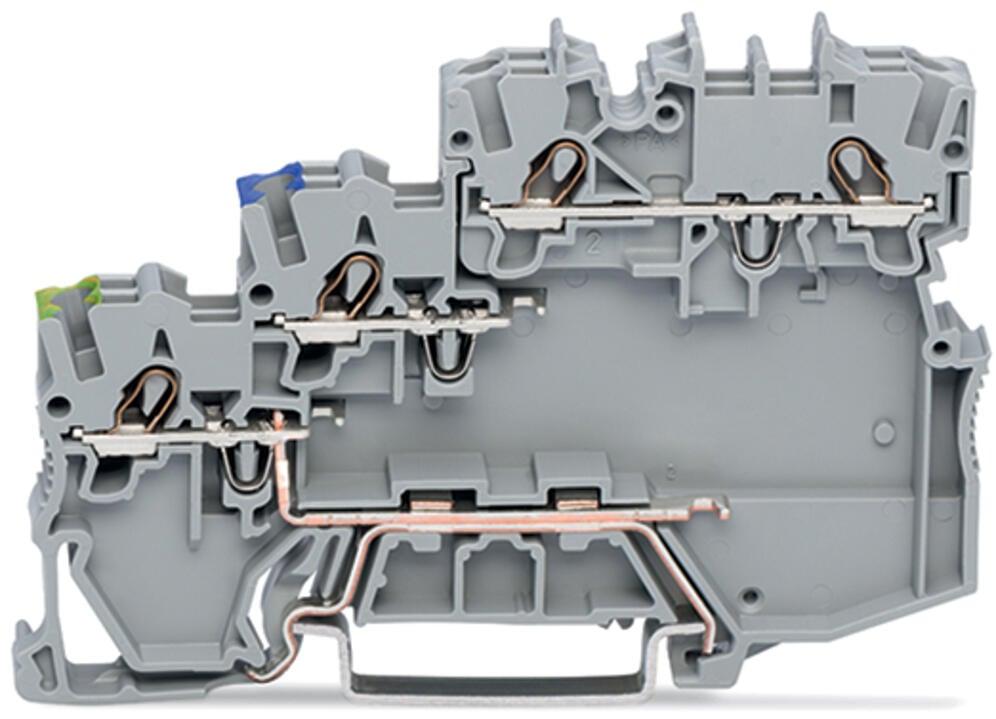

WAGO 2000-5317/102-000 Actuator terminal block
Part Number # 2000-5317/102-000
SKU # 2359374
Wago 2000-5317/102-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2000-5317/102-000 |
| SKU #: | 2359374 |
| Amperage Rating: | 13.5 A |
| Dimensions: | 3.193 in H x 0.276 in W x 2.063 in D |
| Number of Poles: | 4 |
| Type: | Operating Tool |
| Wire Size: | 20 to 16 AWG |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 81.1 mm / 3.193 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 1 mm² |
| Rated current: | 13.5 A |
| Solid conductor: | 0.14 … 1.5 mm² / 24 … 16 AWG |
| Total number of connection points: | 8 |
| Weight: | 17.396 g |
| Width: | 7 mm / 0.276 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143408165 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2000-5317/102-000 Actuator terminal block
Brand: Wago
Part Number: 2000-5317/102-000
Additional Description: WAGO-2000-5317/102-000 3-CONDUCTOR ACTUATOR SUPPLY TERMINAL BLOCK; FOR PNP-(HIGH-SIDE) SWITCHING ACTUATORS; WITH GROUND CONTACT; WITH COLORED CONDUCTOR ENTRIES; 1 MM; PUSH-IN CAGE CLAMP; 1,00 MM; GRAY 60285735 TERMINAL BLOCK; FOR PNP-(HIGH-SIDE) SWITCHING ACTUATORS; WITH GROUND CONTACT; WITH COLORED CONDUCTOR ENTRIES; 1 MM ; PUSH-IN CAGE CLAMP ; 1,00 MM ; GRAY 60285735 ACTUATORS; WITH GROUND CONTACT; 2-POLE; RAIL MOUNT; 3-CONDUCTOR; 7 MM WIDE; GRAY
Catalog Description: 3-conductor actuator supply terminal block; for PNP-(high-side) switching actuators; with ground contact; with colored conductor entries; 1 mm²; Push-in CAGE CLAMP®; 1,00 mm²; gray
2000-5317/102-000 Standards
CSA 22.2 No 158|IEC/EN 60947-7-1|RoHS CompliantSKU #2359374Part Number #2000-5317/102-000UNSPSC39121410UPC04055143408165
