Part Number # 2000-5352
SKU # 2333347
Image provided may only be a representation of
final product and may include optional equipment
2000-5352

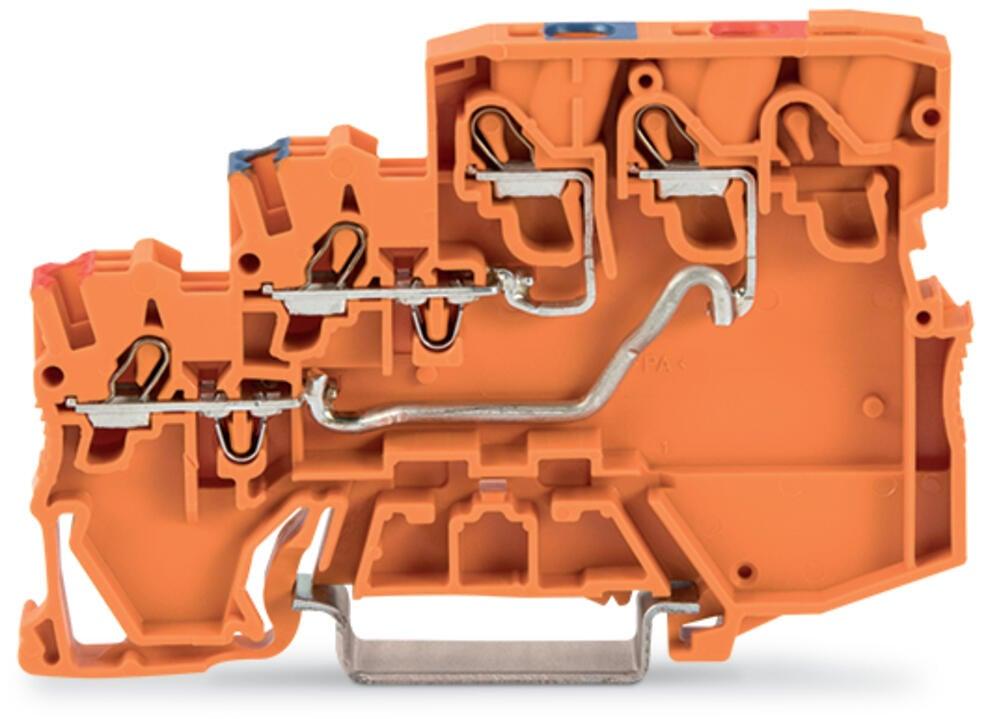

WAGO 2000-5352 TOPJOB S sensor supply terminal block
Part Number # 2000-5352
SKU # 2333347
$11.44 / Each
Typical price:$12.39 / Each
Wago 2000-5352 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2000-5352 |
| SKU #: | 2333347 |
| Amperage Rating: | 28 A |
| Dimensions: | 3.193 in H x 0.276 in W x 1.945 in D |
| Number of Poles: | 2 |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 81.1 mm / 3.193 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 1 mm² |
| Rated current: | 28 A |
| Solid conductor: | 0.14 … 1.5 mm² / 24 … 16 AWG |
| Total number of connection points: | 8 |
| Weight: | 15.776 g |
| Width: | 7 mm / 0.276 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143497121 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$11.44 / Each
Typical price:$12.39 / Each
Quantity:
WAGO 2000-5352 TOPJOB S sensor supply terminal block
Brand: Wago
Part Number: 2000-5352
Additional Description: WAGO-2000-5352 3-CONDUCTOR SENSOR SUPPLY TERMINAL BLOCK; FOR PNP (POSITIVE) SWITCHING SENSORS; POWER SUPPLY FROM CONTROL PANEL SIDE; WITH COLORED CONDUCTOR ENTRIES; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; ORANGE 60310325
Catalog Description: 3-conductor sensor supply terminal block; Power supply from control panel side; with colored conductor entries; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; orange
2000-5352 Standards
CSA 22.2 No 158|IEC/EN 60947-7-1|RoHS CompliantSKU #2333347Part Number #2000-5352UNSPSC39121410UPC04055143497121
