Part Number # 2000-5410
SKU # 2339903
Image Disclaimers Message
2000-5410

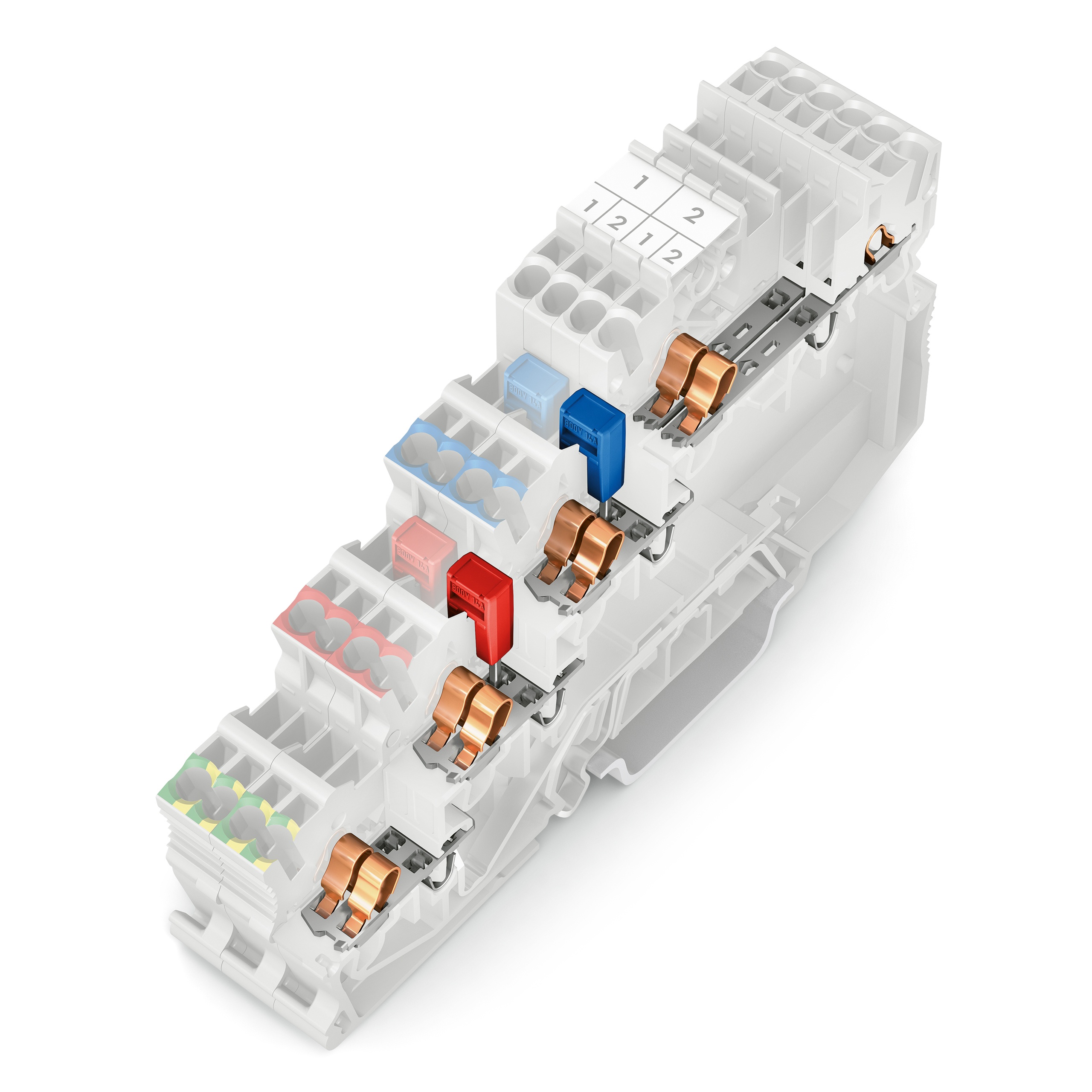

WAGO 2000-5410 TOPJOB S sensor terminal block
Part Number # 2000-5410
SKU # 2339903
Wago 2000-5410 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2000-5410 |
| SKU #: | 2339903 |
| Series: | 2000 |
| Suitable For Use With: | Terminal Block |
| Type: | 4-Conductor |
| Actuation type: | Push-in || Operating tool |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 97.3 mm / 3.831 inch |
| Height: | 3.8 in |
| Insulation material: | Polyamide (PA66) |
| Length: | 2.06 in |
| Material: | Polyamide |
| Mounting type: | DIN-35 rail |
| Nominal cross-section: | 1 mm² |
| Rated current: | 13.5 A |
| Solid conductor: | 0.14 … 1.5 mm² / 24 … 16 AWG |
| Total number of connection points: | 10 |
| Weight: | 17.530 g |
| Width: | 0.27 in, 7 mm / 0.276 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143442244 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2000-5410 TOPJOB S sensor terminal block
Brand: Wago
Part Number: 2000-5410
Additional Description: WAGO-2000-5410 4-CONDUCTOR SENSOR TERMINAL BLOCK; FOR PNP (POSITIVE) SWITCHING SENSORS; WITH GROUND CONNECTION VIA PUSH-IN TYPE JUMPER BARS; WITH COLORED CONDUCTOR ENTRIES; 1 MM; PUSH-IN CAGE CLAMP; 1,00 MM; GRAY 60296482 FOR PNP (POSITIVE) SWITCHING SENSORS; WITH GROUND CONNECTION VIA PUSH-IN TYPE JUMPER BARS; WITH COLORED CONDUCTOR ENTRIES; 1 MM ; PUSH-IN CAGE CLAMP ; 1,00 MM ; GRAY CONN VIA PUSH IN JUMPER BARS
Catalog Description: 4-conductor sensor terminal block; with ground connection via push-in type jumper bars; with colored conductor entries; 1 mm²; Push-in CAGE CLAMP®; 1,00 mm²; gray
2000-5410 Standards
RoHS CompliantSKU #2339903Part Number #2000-5410UNSPSC39121410UPC04055143442244
