2001-1205

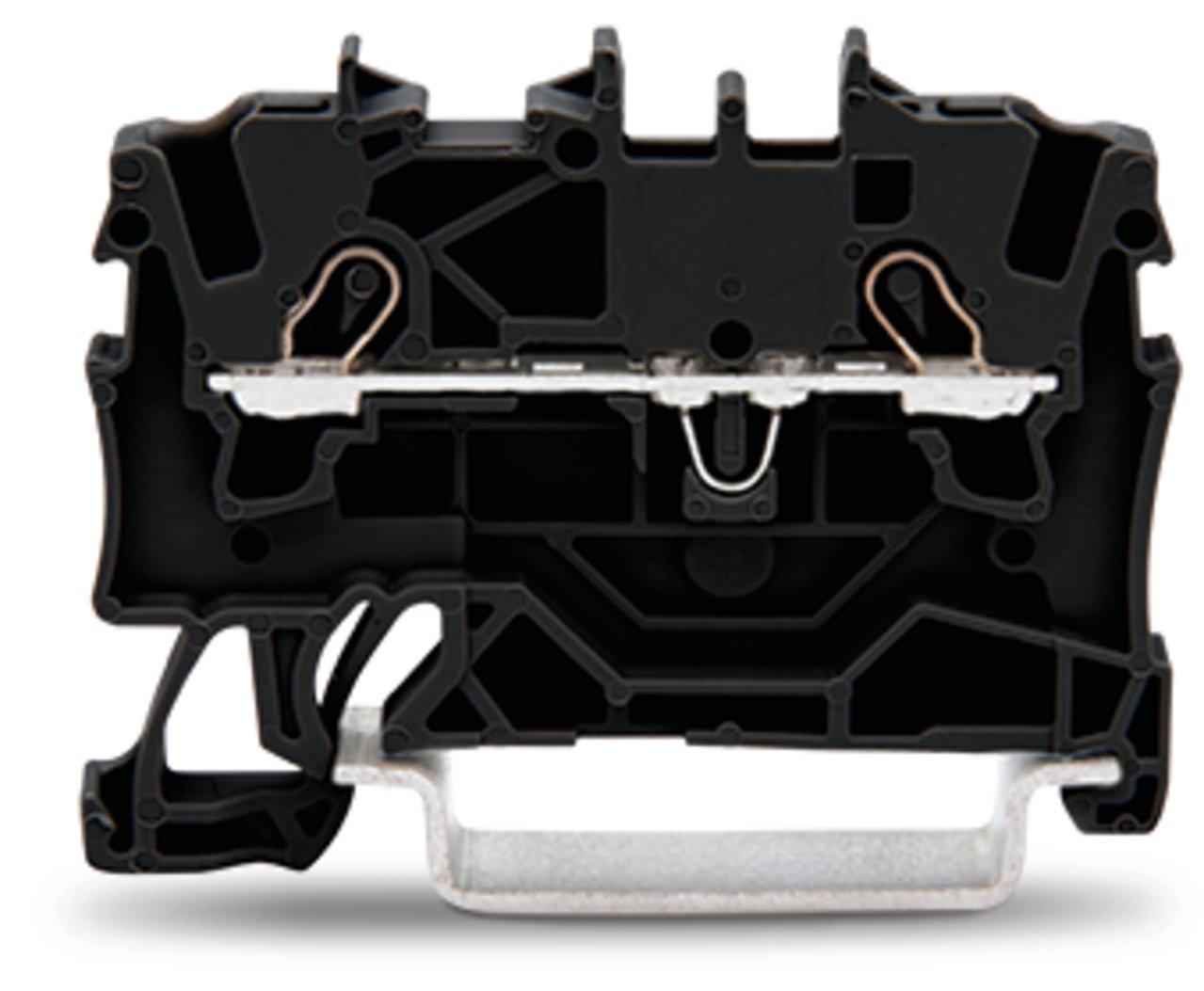

WAGO 2001-1205 TOPJOB S feedthrough terminal block
Part Number # 2001-1205
SKU # 2233691
Wago 2001-1205 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2001-1205 |
| SKU #: | 2233691 |
| Series: | 2001 |
| Suitable For Use With: | Terminal Block |
| Type: | 2-Conductor |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Black |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 48.5 mm / 1.909 inch |
| Height: | 1.9 in |
| Insulation material: | Polyamide (PA66) |
| Length: | 1.29 in |
| Material: | Polyamide |
| Mounting type: | DIN-35 rail |
| Nominal cross-section: | 1.5 mm² |
| Rated current: | 18 A |
| Solid conductor: | 0.25 … 2.5 mm² / 22 … 14 AWG |
| Total number of connection points: | 2 |
| Weight: | 3.533 g |
| Width: | 0.16 in, 4.2 mm / 0.165 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454537371 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2001-1205 TOPJOB S feedthrough terminal block
Brand: Wago
Part Number: 2001-1205
Additional Description: WAGO-2001-1205 2-CONDUCTOR THROUGH TERMINAL BLOCK; 1.5 MM; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 1,50 MM; BLACK 20011205 1.5 MM ; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 1,50 MM ; BLACK 20011205
Catalog Description: 2-conductor through terminal block; 1.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm²; black
2001-1205 Application
Suitable for Ex e II applications2001-1205 Standards
EN 60947|EN 60947|EN 60947|UL 60079|IEC 60079|CNCA-C23-01|TP TC 012/2011|IEC 60079|RoHS CompliantSKU #2233691Part Number #2001-1205UNSPSC39121410UPC04045454537371
