Part Number # 2001-1207
SKU # 2235667
Image Disclaimers Message
2001-1207

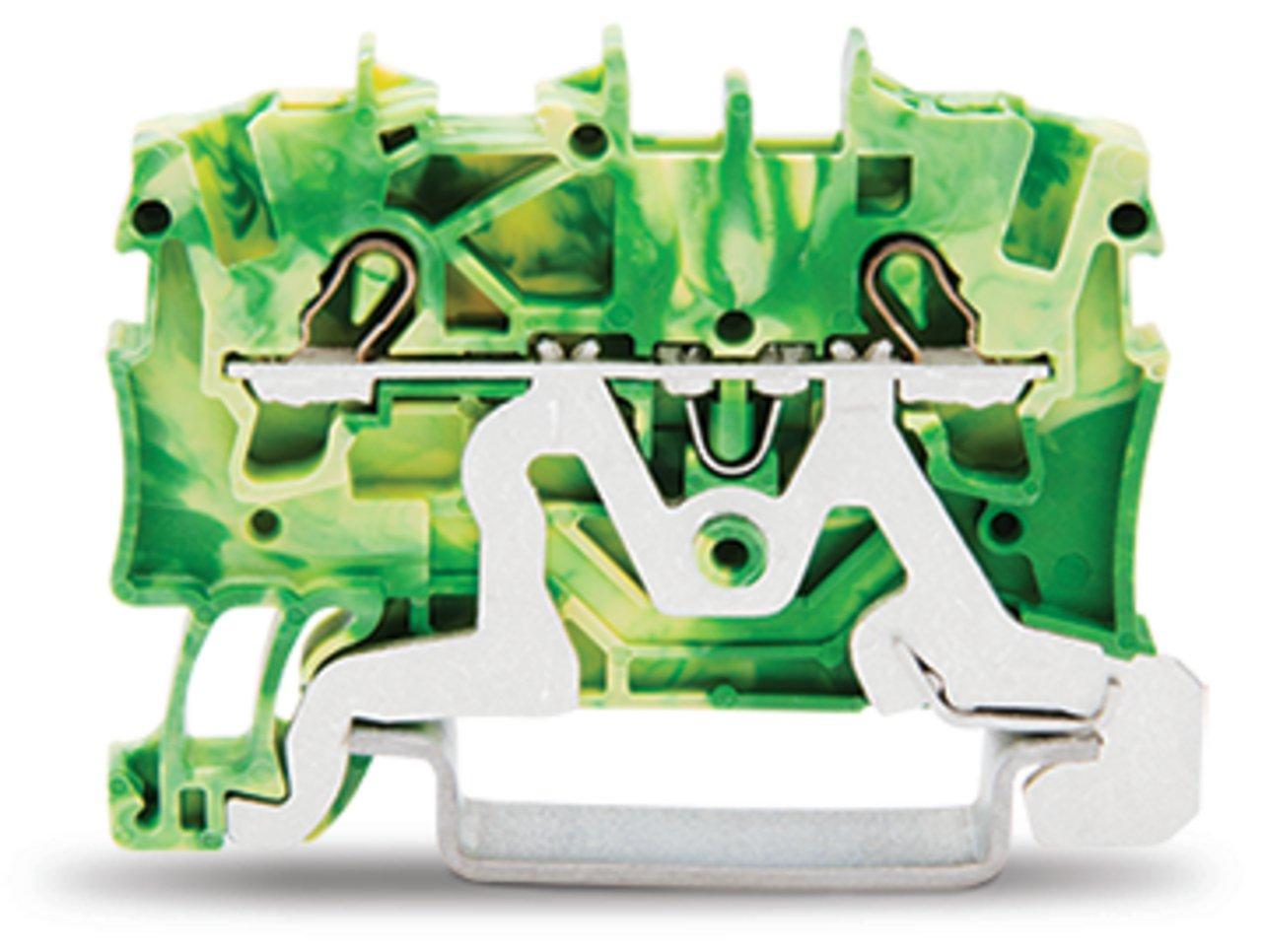

WAGO 2001-1207 TOPJOB S ground terminal block
Part Number # 2001-1207
SKU # 2235667
$5.73 / Each
Typical price:$6.21 / Each
Wago 2001-1207 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2001-1207 |
| SKU #: | 2235667 |

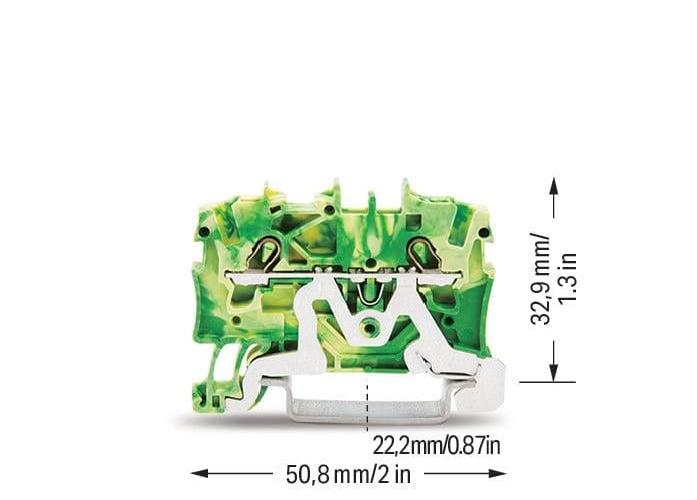

| Dimensions: | 2 in H x 0.165 in W x 1.295 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 22 to 14 AWG |
| Actuation type: | Push-in || Operating tool |
| Color: | Green-yellow, Green/Yellow |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 50.8 mm / 2 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 1.5 mm² |
| Solid conductor: | 0.25 … 2.5 mm² / 22 … 14 AWG |
| Total number of connection points: | 2 |
| Weight: | 6.669 g |
| Width: | 4.2 mm / 0.165 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04017332997317 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5.73 / Each
Typical price:$6.21 / Each
Quantity:
WAGO 2001-1207 TOPJOB S ground terminal block
Brand: Wago
Part Number: 2001-1207
Additional Description: WAGO-2001-1207 2-CONDUCTOR GROUND TERMINAL BLOCK; 1.5 MM ; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 1,50 MM ; GREEN-YELLOW 20011207
Catalog Description: 2-conductor ground terminal block; 1.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm²; green-yellow
2001-1207 Application
Suitable for Ex e II applications2001-1207 Standards
IEC/EN 60947-7-2|RoHS CompliantSKU #2235667Part Number #2001-1207UNSPSC39121410UPC04017332997317
