2001-1302

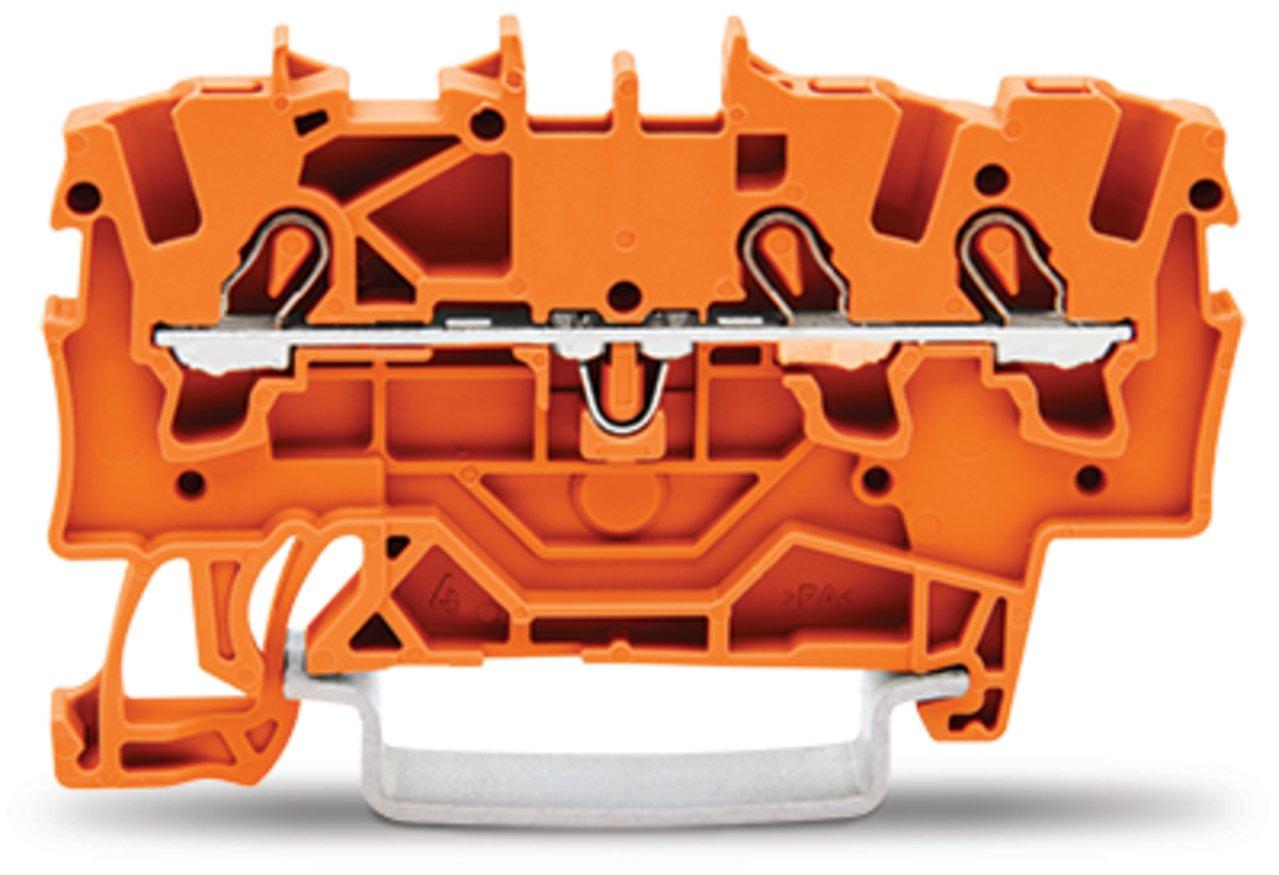

WAGO 2001-1302 TOPJOB S feedthrough terminal block
Part Number # 2001-1302
SKU # 2205372
Wago 2001-1302 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2001-1302 |
| SKU #: | 2205372 |
| Amperage Rating: | 18 A |
| Dimensions: | 2.33 in H x 0.165 in W x 1.555 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 22 to 14 AWG |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Orange |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 59.2 mm / 2.33 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 1.5 mm² |
| Rated current: | 18 A |
| Solid conductor: | 0.25 … 2.5 mm² / 22 … 14 AWG |
| Total number of connection points: | 3 |
| Weight: | 4.900 g |
| Width: | 4.2 mm / 0.165 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04017332998642 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2001-1302 TOPJOB S feedthrough terminal block
Brand: Wago
Part Number: 2001-1302
Additional Description: WAGO-2001-1302 3-CONDUCTOR THROUGH TERMINAL BLOCK; 20011302 APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 1,50 MM; ORANGE 1.5 MM ; SUITABLE FOR EX E II MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 1,50 MM ; ORANGE 20011302
Catalog Description: 3-conductor through terminal block; 1.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm²; orange
2001-1302 Application
Suitable for Ex e II applications2001-1302 Standards
CSA 22.2 No 158|ATEX: PTB 05 ATEX 1094 U / IECEx: PTB 05.0034U (Ex eb IIC Gb)|RoHS CompliantSKU #2205372Part Number #2001-1302UNSPSC39121410UPC04017332998642
