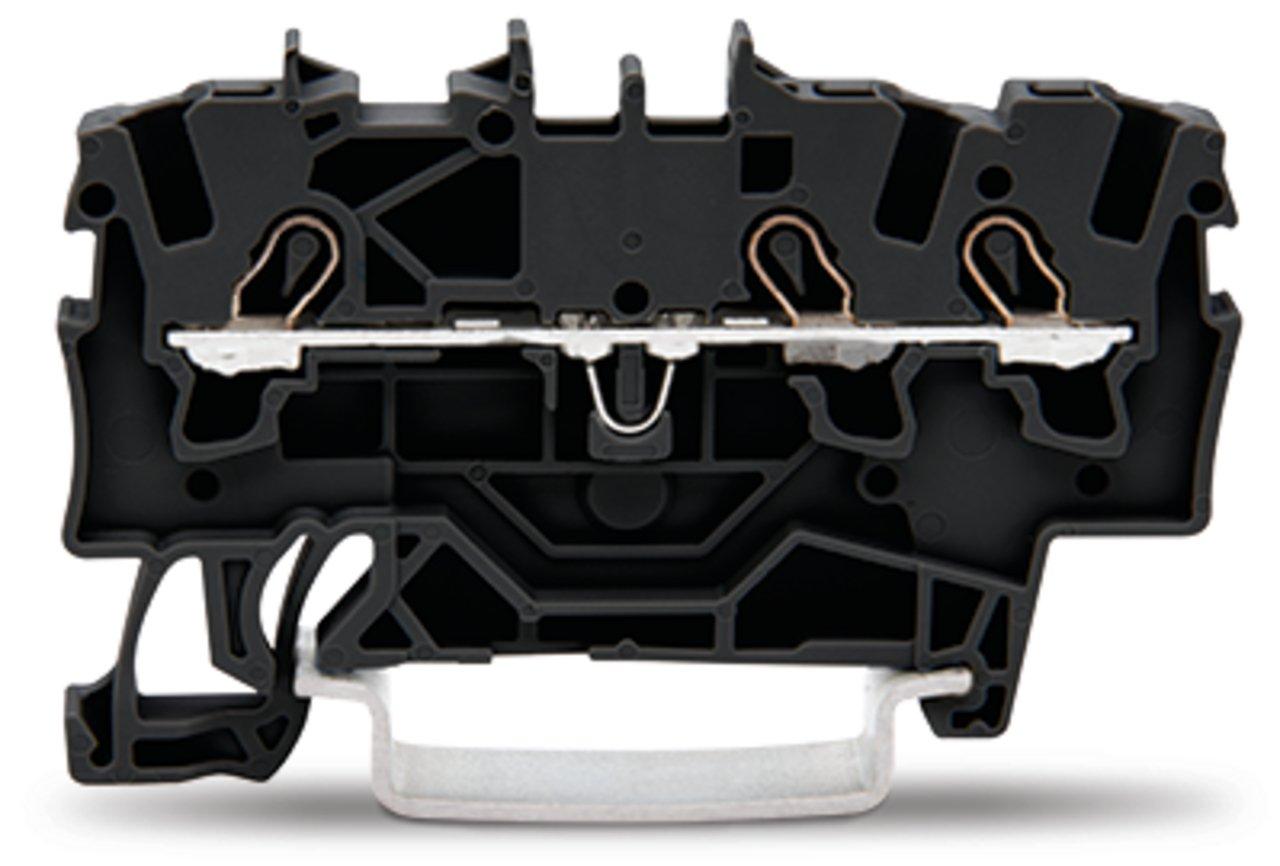

WAGO 2001-1305 TOPJOB S feedthrough terminal block

2240966 MFG #: 2001-1305
$132.00 / EA
Usually Ships within 5-8 Days
  • Actuation type: Push-in || Operating tool
  • Approvals per: UL 1059
  • Color: Black
  • Connection technology: Push-in CAGE CLAMP®
  • Country of origin: DE

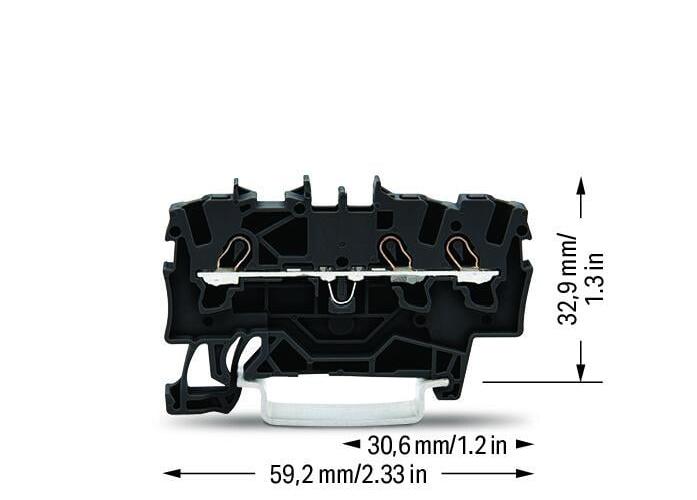

  • Depth: 59.2 mm / 2.33 inch
  • Insulation material: Polyamide (PA66)
  • Mounting type: DIN-35 rail
  • Nominal cross-section: 1.5 mm²
  • Rated current: 18 A
  • Solid conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
  • Total number of connection points: 3
  • Weight: 4.326 g
  • Width: 4.2 mm / 0.165 inch
  • Wiring type: Front-entry wiring

WAGO 2001-1305 TOPJOB S feedthrough terminal block

Additional Description: WAGO-2001-1305 3-CONDUCTOR THROUGH TERMINAL BLOCK; 1.5 MM ; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP®; 1,50 MM ; BLACK 20011305
