Part Number # 2001-1307
SKU # 2161037
Image Disclaimers Message
2001-1307

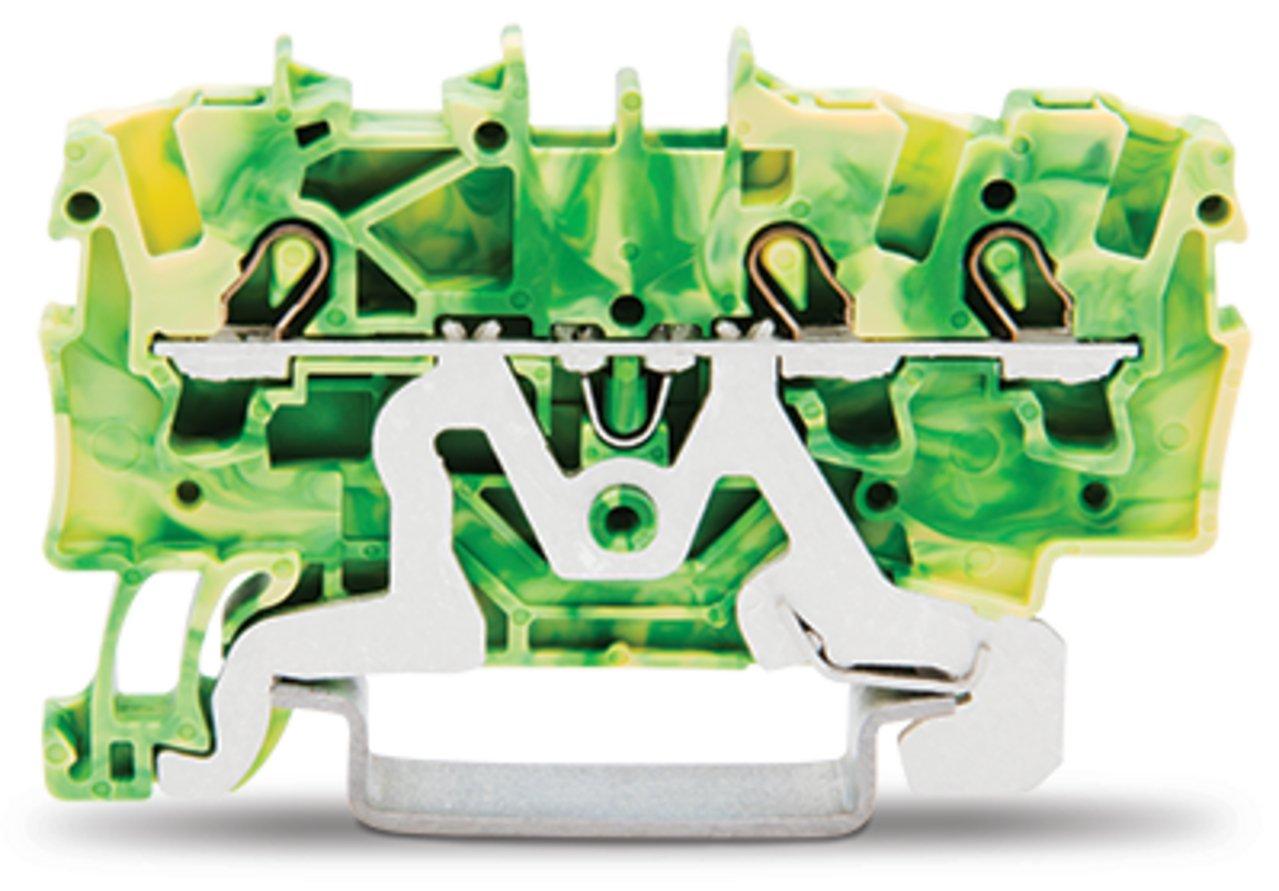

WAGO 2001-1307 TOPJOB S ground terminal block
Part Number # 2001-1307
SKU # 2161037
$6.47 / Each
Typical price:$7.01 / Each
Wago 2001-1307 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2001-1307 |
| SKU #: | 2161037 |

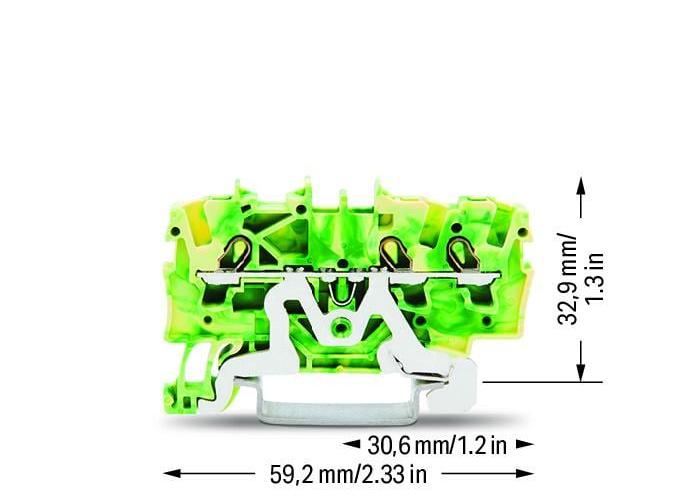

| Dimensions: | 2.33 in H x 0.165 in W x 1.295 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 22 to 14 AWG |
| Actuation type: | Push-in || Operating tool |
| Color: | Green-yellow, Green/Yellow |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 59.2 mm / 2.33 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 1.5 mm² |
| Solid conductor: | 0.25 … 2.5 mm² / 22 … 14 AWG |
| Total number of connection points: | 3 |
| Weight: | 7.484 g |
| Width: | 4.2 mm / 0.165 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04017332998659 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6.47 / Each
Typical price:$7.01 / Each
Quantity:
- WAGO, 2001-1307, Ground Terminal Block, Operating Tool, 1 Pole, 22 to 14 AWG Wire, 0.35 to 0.43 in Wire Strip Length, DIN Rail Mounting, Push-In Connection, -35 to 85 deg C, Polyamide, Green/Yellow, 2.33 in H x 0.165 in W x 1.295 in D Dimensions
2001-1307 Application
Suitable for Ex e II applications2001-1307 Standards
IEC/EN 60947-7-2|RoHS CompliantSKU #2161037Part Number #2001-1307UNSPSC39121410UPC04017332998659
