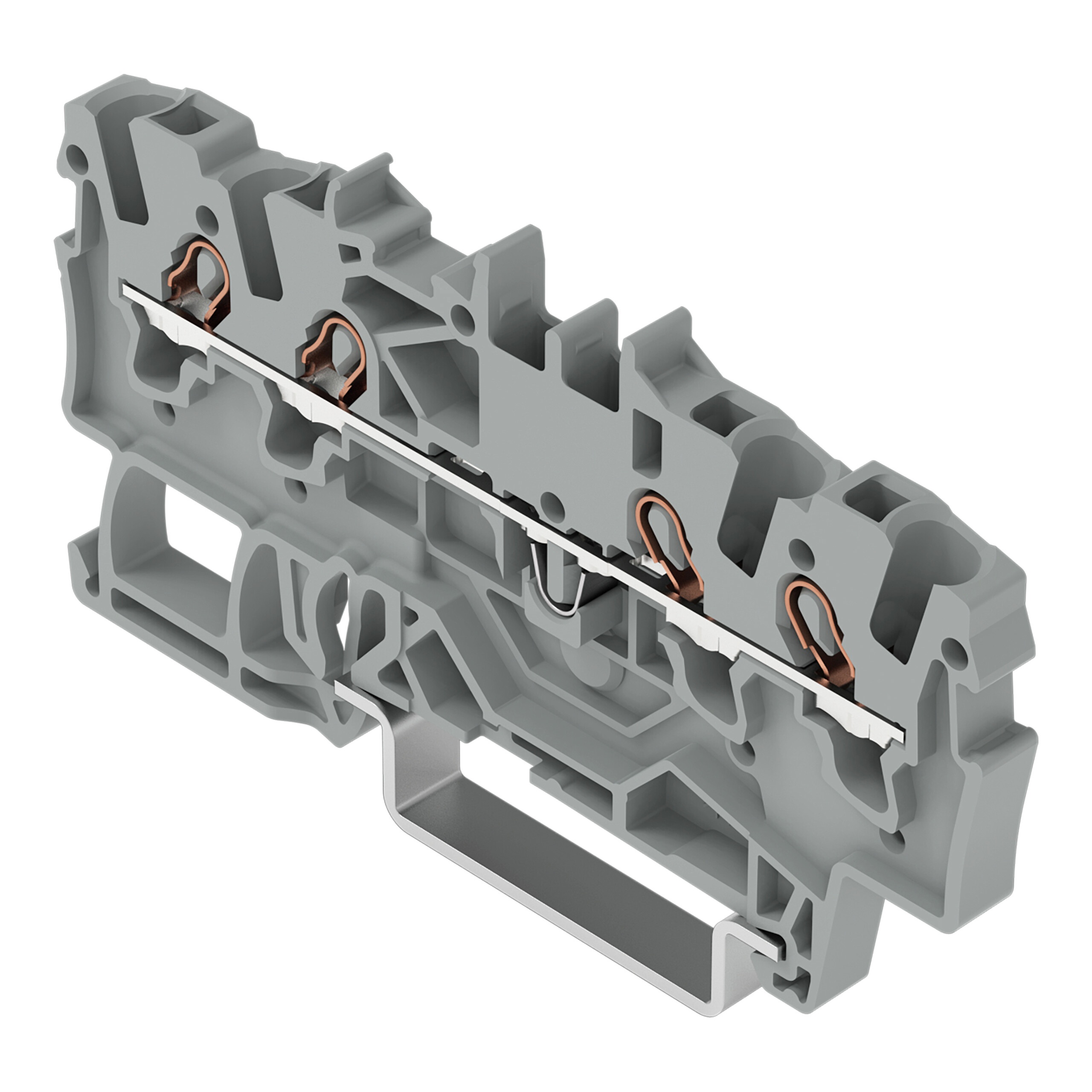

WAGO 2001-1401 TOPJOB S feedthrough terminal block
Part Number # 2001-1401
SKU # 999680
$2.05 / Each
Typical price:$2.29 / Each
Wago 2001-1401 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2001-1401 |
| SKU #: | 999680 |
| Amperage Rating: | 18, 18 A |
| Dimensions: | 1.299 in H x 0.165 in W x 2.76 in D |
| Series: | 2001 |
| Terminal Type: | Through |
| Wire Size: | 22 to 14, 22 to 14 AWG |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Cage Clamp |
| Country of origin: | DE |
| Depth: | 69.9 mm / 2.752 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide 6.6 Insulation |
| Mounting type: | DIN Rail, DIN-35 rail |
| Nominal cross-section: | 1.5 mm² |
| Rated current: | 18 A |
| Solid conductor: | 0.25 … 2.5 mm² / 22 … 14 AWG |
| Total number of connection points: | 4 |
| Weight: | 5.860 g |
| Width: | 4.2 mm / 0.165 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04017332998666 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.05 / Each
Typical price:$2.29 / Each
Quantity:
- WAGO Terminal Block, Series: 2001, 800 V AC, 18 A, 22 to 14 AWG Wire, 0.35 to 0.43 in Wire Strip Length, Through Terminal, DIN Rail Mount, Cage Clamp, Polyamide 6.6 Insulation, Gray, 1.299 in H x 0.165 in W x 2.76 in D
2001-1401 Specifications
- 4 terminals
- 1 potential, front-entry wiring, 8 kV impulse voltage, 3 deg pollution
- Horizontal design, center/side marking
- Push-in CAGE CLAMP® connection technology, operating tool actuation
- Copper conductor
- 800 V rated Voltage, 600 V UL/CSA, 18 A rated current, 15 A UL/CSA
2001-1401 Application
For EX e ll Applications2001-1401 Item Features
- 4 terminals
- 1 potential, front-entry wiring, 8 kV impulse voltage, 3 deg pollution
- Horizontal design, center/side marking
- Push-in CAGE CLAMP connection technology, operating tool actuation
- Copper conductor
- 800 V rated Voltage, 600 V UL/CSA, 18 A rated current, 15 A UL/CSA
- https://www.youtube.com/watch?v=178VcP0Ui8s
2001-1401 Standards
RoHS CompliantSKU #999680Part Number #2001-1401UNSPSC39121410UPC04017332998666
