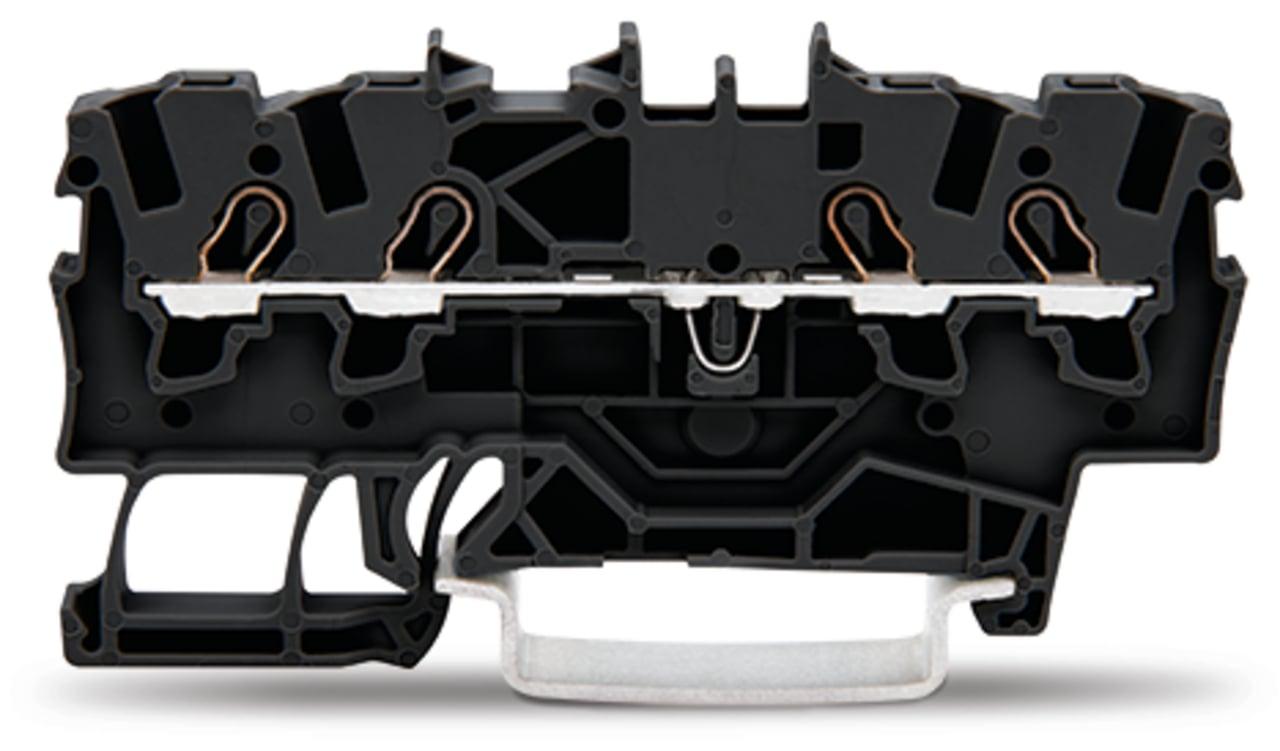

WAGO 2001-1405 TOPJOB S feedthrough terminal block
Part Number # 2001-1405
SKU # 2240980
Wago 2001-1405 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2001-1405 |
| SKU #: | 2240980 |
| Series: | 2001 |
| Suitable For Use With: | Terminal Block |
| Type: | 4-Conductor |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Black |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 69.9 mm / 2.752 inch |
| Height: | 2.7 in |
| Insulation material: | Polyamide (PA66) |
| Length: | 1.29 in |
| Material: | Polyamide |
| Mounting type: | DIN-35 rail |
| Nominal cross-section: | 1.5 mm² |
| Rated current: | 18 A |
| Solid conductor: | 0.25 … 2.5 mm² / 22 … 14 AWG |
| Total number of connection points: | 4 |
| Weight: | 5.223 g |
| Width: | 0.16 in, 4.2 mm / 0.165 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454537425 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2001-1405 TOPJOB S feedthrough terminal block
Brand: Wago
Part Number: 2001-1405
Additional Description: WAGO-2001-1405 4-CONDUCTOR THROUGH TERMINAL BLOCK; 1.5 MM; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 1,50 MM; BLACK 20011405 1.5 MM ; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 1,50 MM ; BLACK 20011405
Catalog Description: 4-conductor through terminal block; 1.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm²; black
2001-1405 Application
Suitable for Ex e II applications2001-1405 Standards
EN 60947|EN 60947|EN 60947|UL 60079|IEC 60079|CNCA-C23-01|TP TC 012/2011|RoHS CompliantSKU #2240980Part Number #2001-1405UNSPSC39121410UPC04045454537425
