Part Number # 2002-1205
SKU # 2191687
Image Disclaimers Message
2002-1205

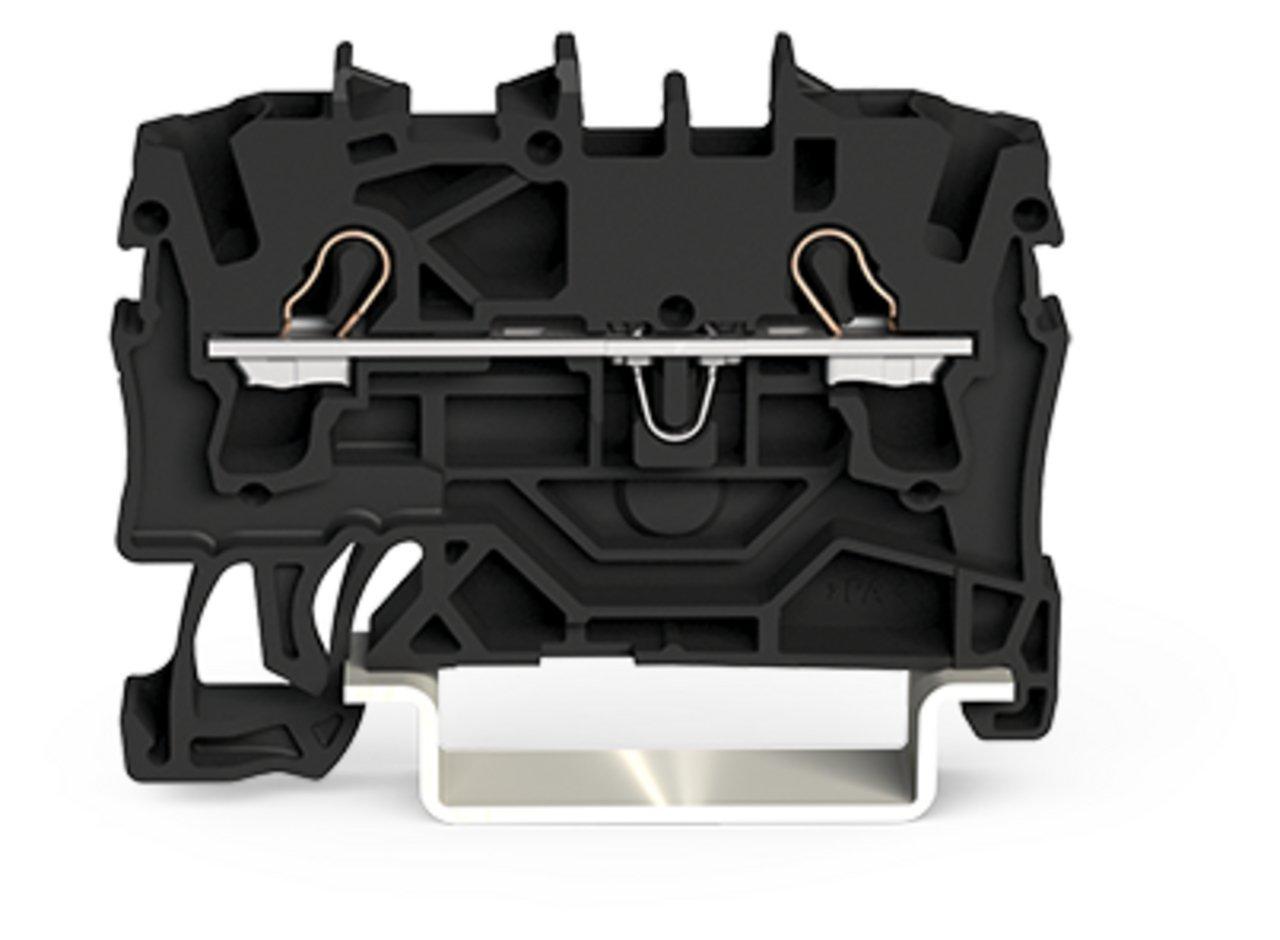

WAGO 2002-1205 TOPJOB S feedthrough terminal block
Part Number # 2002-1205
SKU # 2191687
Wago 2002-1205 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-1205 |
| SKU #: | 2191687 |
| Amperage Rating: | 24 A |
| Dimensions: | 1.909 in H x 0.205 in W x 1.555 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Black |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 48.5 mm / 1.909 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Rated current: | 24 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 4.900 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918081399 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2002-1205 TOPJOB S feedthrough terminal block
Brand: Wago
Part Number: 2002-1205
Additional Description: WAGO-2002-1205 2-CONDUCTOR THROUGH TERMINAL BLOCK; 2.5 MM; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 2,50 MM; BLACK 20021205 2.5 MM ; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP 2,50 MM ; BLACK 20021205
Catalog Description: 2-conductor through terminal block; 2.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; black
2002-1205 Application
Suitable for Ex e II applications2002-1205 Standards
CSA 22.2 No 158|ATEX: PTB 03 ATEX 1162 U / IECEx: PTB 03.0004U (Ex eb IIC Gb)|RoHS CompliantSKU #2191687Part Number #2002-1205UNSPSC39121410UPC04044918081399
