2002-1208

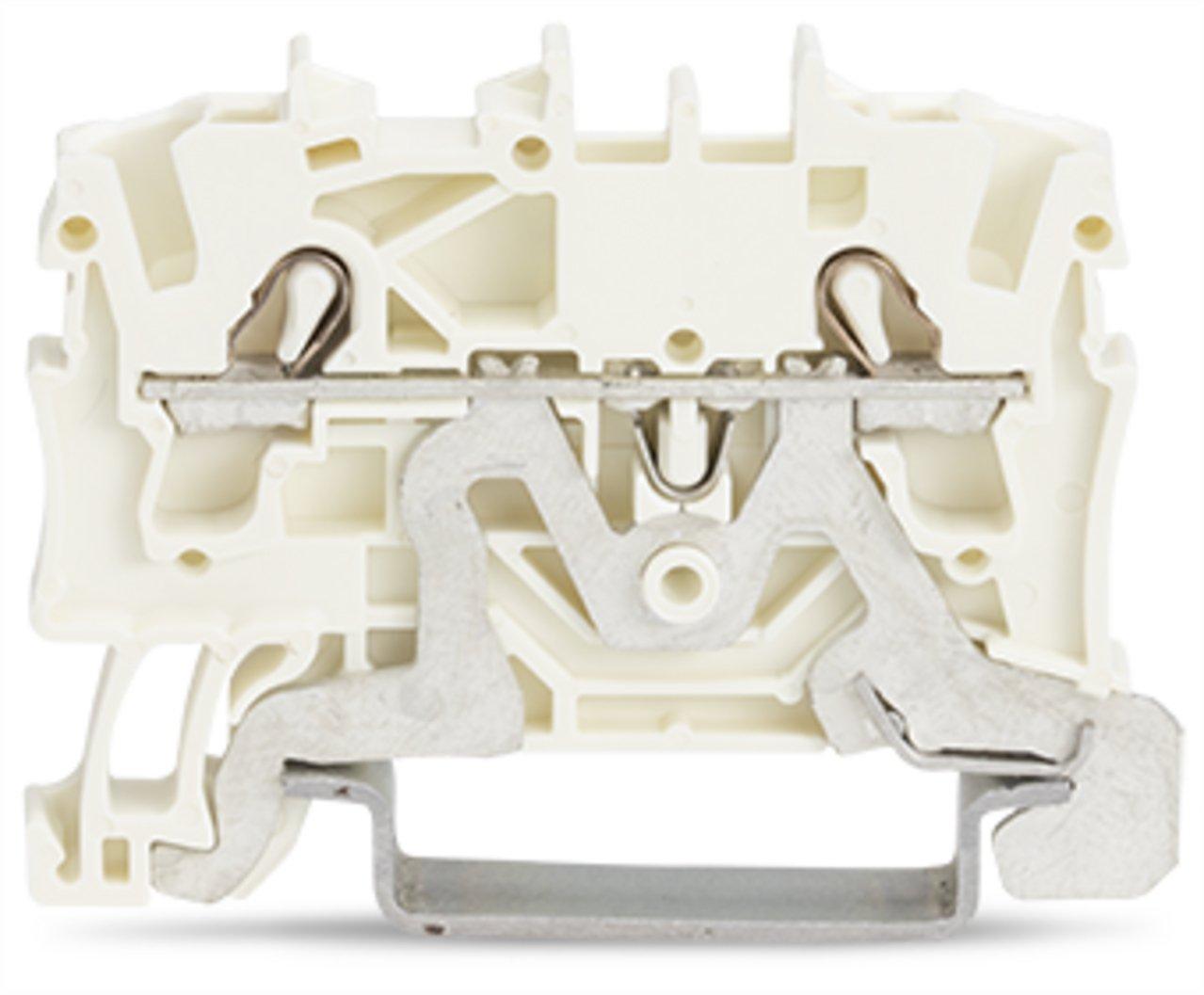

WAGO 2002-1208 Shield terminal block
Part Number # 2002-1208
SKU # 2360875
$5.65 / Each
Typical price:$6.12 / Each
Wago 2002-1208 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-1208 |
| SKU #: | 2360875 |
| Dimensions: | 2 in H x 0.205 in W x 1.295 in D |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Type: | 2 Conductor |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Push-in || Operating tool |
| Color: | White |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 50.8 mm / 2 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide 6.6 |
| Mounting type: | DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 7.986 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143242028 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5.65 / Each
Typical price:$6.12 / Each
Quantity:
WAGO 2002-1208 Shield terminal block
Brand: Wago
Part Number: 2002-1208
Additional Description: WAGO-2002-1208 2-CONDUCTOR SHIELD TERMINAL BLOCK; 2.5 MM ; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 2,50 MM ; WHITE 60248635 WIDE; WHITE
Catalog Description: 2-conductor shield terminal block; 2.5 mm²; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; white
2002-1208 Standards
RoHS Compliant|IEC/EN 60947-7-2SKU #2360875Part Number #2002-1208UNSPSC39121410UPC04055143242028
