Part Number # 2002-1302
SKU # 2248820
2002-1302
WAGO 2002-1302 TOPJOB S feedthrough terminal block
Part Number # 2002-1302
SKU # 2248820
Wago 2002-1302 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-1302 |
| SKU #: | 2248820 |
| Amperage Rating: | 24/32, 24/32 A |
| Dimensions: | 1.295 in H x 0.205 in W x 2.33 in D |
| Terminal Type: | Through |
| Wire Size: | 22 to 12, 22 to 12 AWG |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 59.2 mm / 2.33 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide 6.6 |
| Mounting type: | DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Rated current: | 24 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 3 |
| Weight: | 5.900 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04017332999267 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2002-1302 TOPJOB S feedthrough terminal block
Brand: Wago
Part Number: 2002-1302
WAGO Terminal Block, 800 VAC, 24/32 A, 22 to 12 AWG Wire, 0.39 to 0.47 in Wire Strip Length, Through Terminal, DIN Rail Mount, Push-In, Polyamide 6.6, Orange, 1.295 in H x 0.205 in W x 2.33 in D
Additional Description: WAGO-2002-1302 3-CONDUCTOR THROUGH TERMINAL BLOCK; 2.5 MM; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 2,50 MM; ORANGE 20021302 2.5 MM ; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 2,50 MM ; ORANGE 20021302
Catalog Description: 3-conductor through terminal block; 2.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; orange
2002-1302 Item Features
- Carrier rail 35 x 15 mounting
- Front entry wiring
- Copper connectable conductor material
- Horizontal design
- 3 number conductor
- 12 to 22 AWG fine stranded conductor
- 12 to 22 AWG solid connection
2002-1302 Standards
RoHS CompliantSKU #2248820Part Number #2002-1302UNSPSC39121410UPC04017332999267

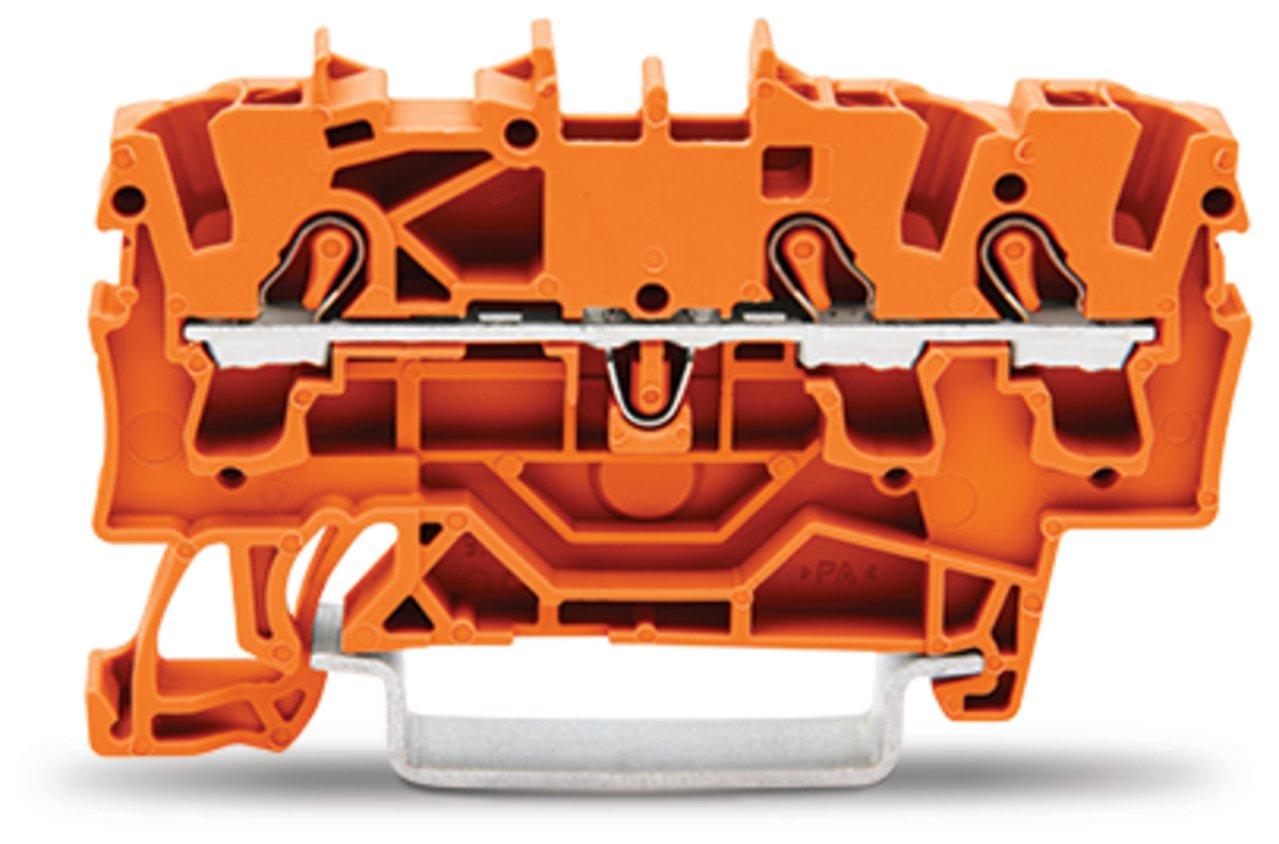

Image provided may only be a representation of final product and may include optional equipment
