Brand: Wago

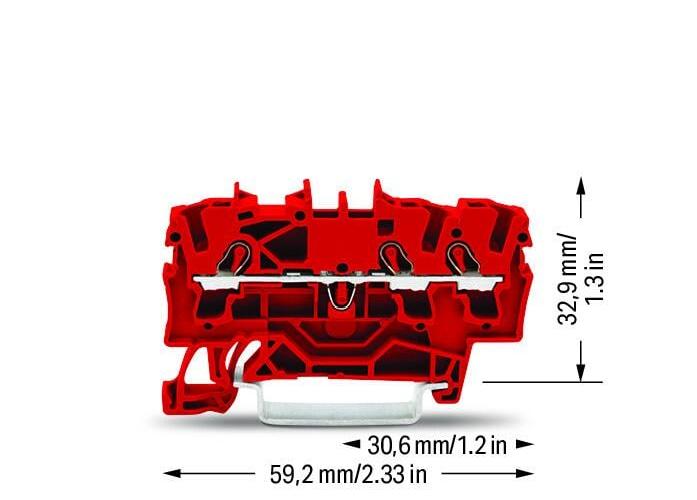

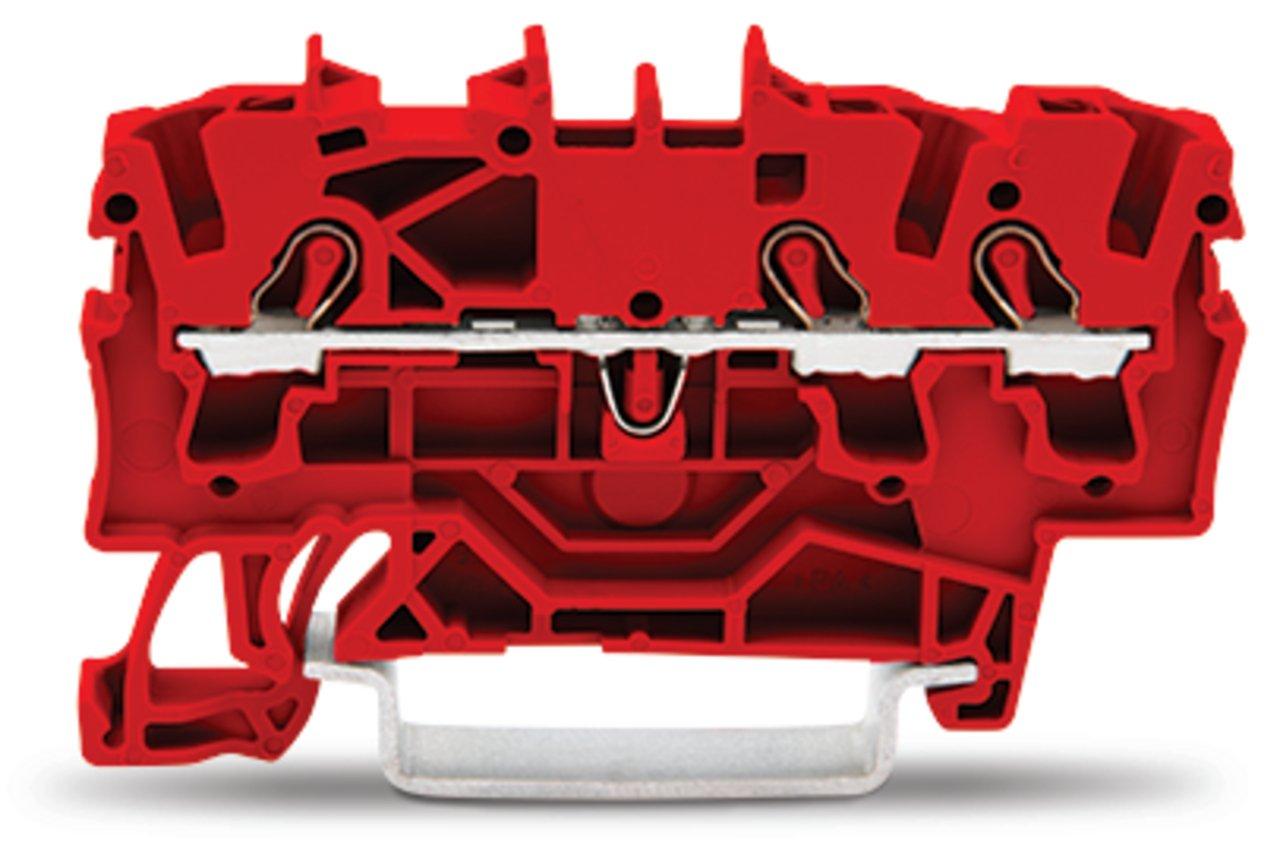

WAGO 2002-1303 TOPJOB S feedthrough terminal block
Image Disclaimers Message
Brand: Wago
WAGO 2002-1303 TOPJOB S feedthrough terminal block
Brand: Wago
WAGO 2002-1303 TOPJOB S feedthrough terminal block
Part #:2002-1303
SKU #: 2230968
$1.82/EA
Key Features
Part #:2002-1303
SKU #: 2230968
Brand: Wago
Actuation type: Push-in || Operating tool
Approvals per: UL 1059
Color: Red
Connection technology: Push-in CAGE CLAMP®
Country of origin: DE
$1.82/EA
151 In Stock
Ships in 1 Business Day
Specifications
Brand: Wago
Actuation type: Push-in || Operating tool
Approvals per: UL 1059
Color: Red
Connection technology: Push-in CAGE CLAMP®
Country of origin: DE
Depth: 59.2 mm / 2.33 inch
Insulation material: Polyamide (PA66)
Mounting type: DIN-35 rail
Nominal cross-section: 2.5 mm²
Rated current: 24 A
Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
Total number of connection points: 2
Weight: 6.200 g
Width: 5.2 mm / 0.205 inch
Wiring type: Front-entry wiring
UNSPSC: 39121410
UPC: 04044918081498
WAGO 2002-1303 TOPJOB S feedthrough terminal block
Additional Description: WAGO-2002-1303 3-CONDUCTOR THROUGH TERMINAL BLOCK; 2.5 MM ; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 2,50 MM ; RED 20021303
Catalog Description: 3-conductor through terminal block; 2.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; red
