Brand: Wago
2002-1305

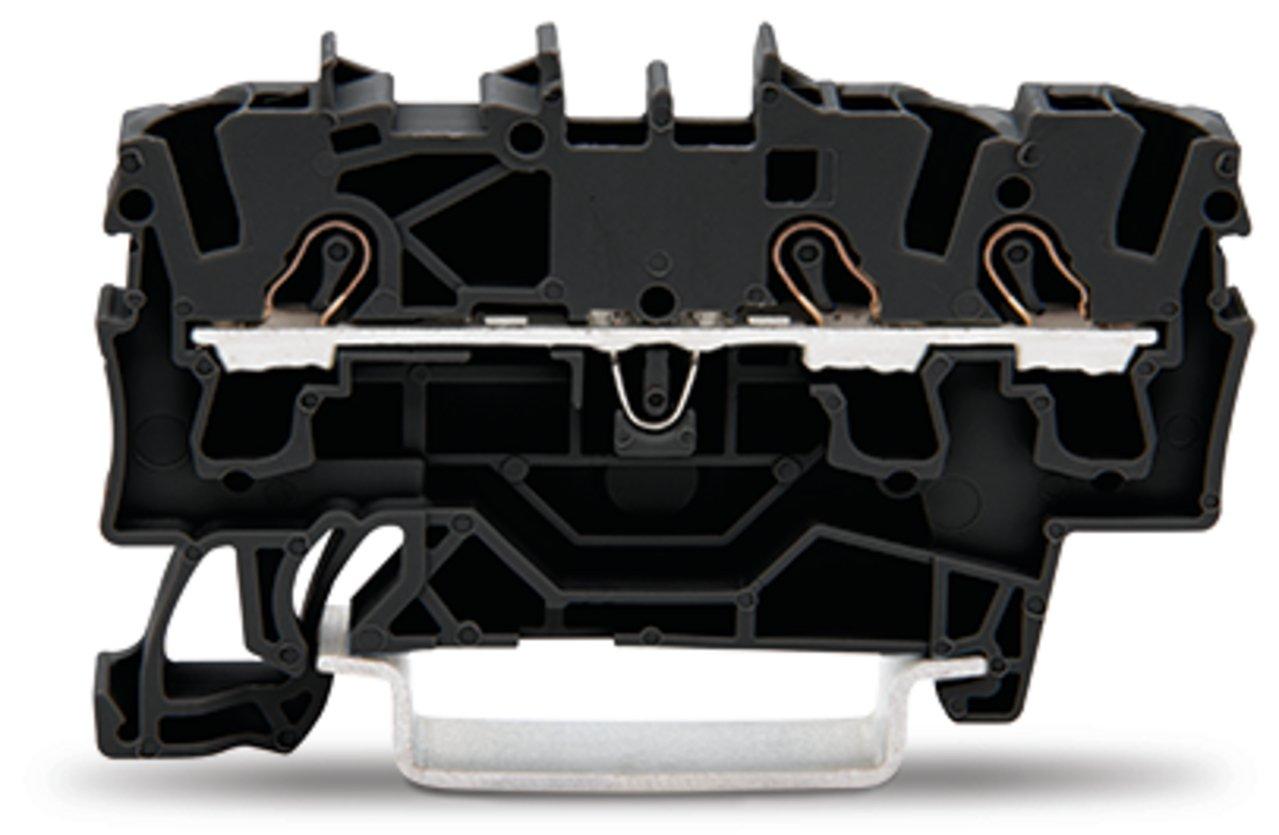

WAGO 2002-1305 TOPJOB S feedthrough terminal block
Part Number # 2002-1305
SKU # 2230969
$202.00 / 100Each
Typical price:$219.00 / Each
Wago 2002-1305 Key Features
Brand: Wago
Part Number # 2002-1305
SKU #2230969
Amperage Rating: 24 A
Dimensions: 2.33 in H x 0.205 in W x 1.555 in D
Number of Poles: 1
Type: Operating Tool
Voltage Rating: 800 V
Wire Size: 22 to 12 AWG
Actuation type: Push-in || Operating tool
Approvals per: UL 1059
Color: Black
Connection technology: Push-in CAGE CLAMP®
Connection type: Clamp
Country of origin: DE
Depth: 59.2 mm / 2.33 inch
Insulation material: Polyamide (PA66)
Material: Polyamide
Mounting type: 35 mm DIN Rail, DIN Rail, DIN-35 rail
Nominal cross-section: 2.5 mm²
Rated current: 24 A
Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
Total number of connection points: 2
Weight: 6.200 g
Width: 5.2 mm / 0.205 inch
Wiring type: Front-entry wiring
Manufacturer Name: WAGO Corporation
UNSPSC: 39121410
UPC: 04044918081511
$202.00 / 100Each
Typical price:$219.00 / Each
SKU # 2230969
Part Number # 2002-1305
WAGO 2002-1305 TOPJOB S feedthrough terminal block
Brand: Wago
Part Number: 2002-1305
Additional Description: WAGO-2002-1305 3-CONDUCTOR THROUGH TERMINAL BLOCK; 2.5 MM ; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 2,50 MM ; BLACK 20021305
Catalog Description: 3-conductor through terminal block; 2.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; black
2002-1305 Application
Suitable for Ex e II applications2002-1305 Standards
CSA 22.2 No 158|ATEX: PTB 03 ATEX 1162 U / IECEx: PTB 03.0004U (Ex eb IIC Gb)|RoHS CompliantSKU #2230969Part Number #2002-1305UNSPSC39121410UPC04044918081511
