Part Number # 2002-1411/1000-411
SKU # 2343201
Image Disclaimers Message
2002-1411/1000-411

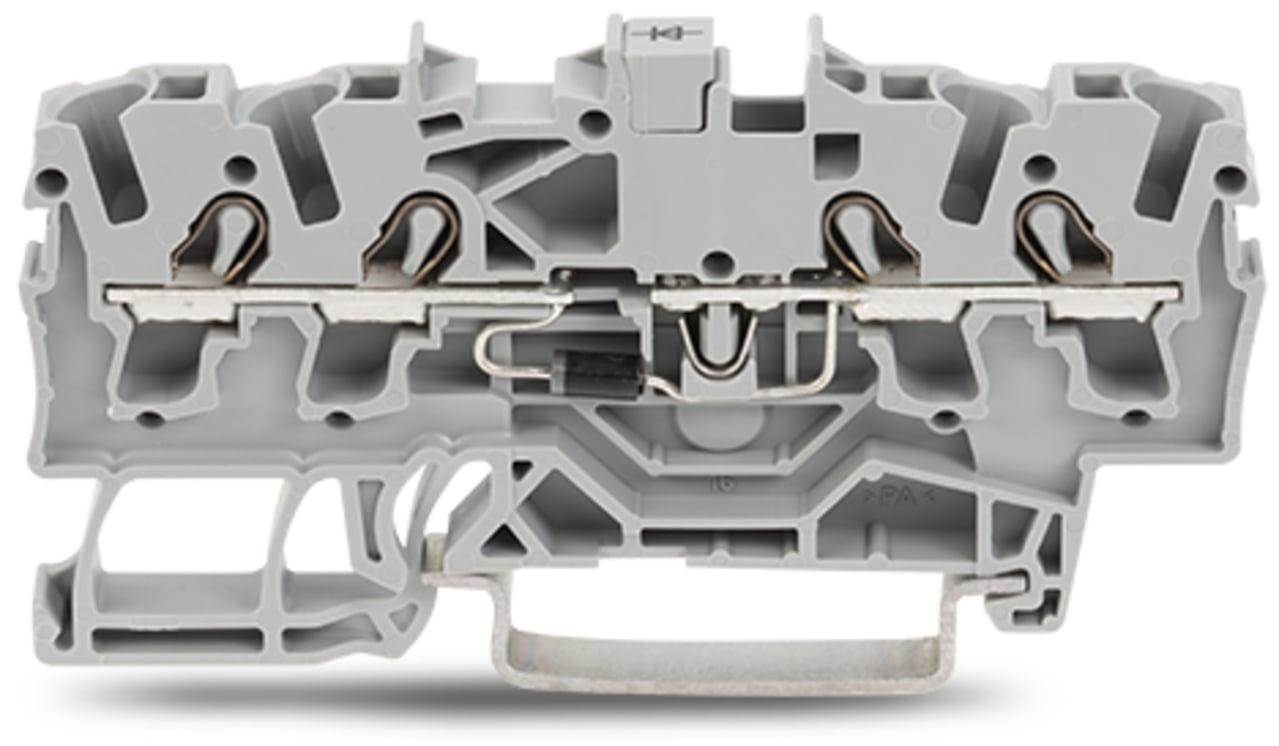

WAGO 2002-1411/1000-411 Terminal Blocks
Part Number # 2002-1411/1000-411
SKU # 2343201
$9.70 / Each
Typical price:$10.51 / Each
Wago 2002-1411/1000-411 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-1411/1000-411 |
| SKU #: | 2343201 |
| Amperage Rating: | 0.5 A |

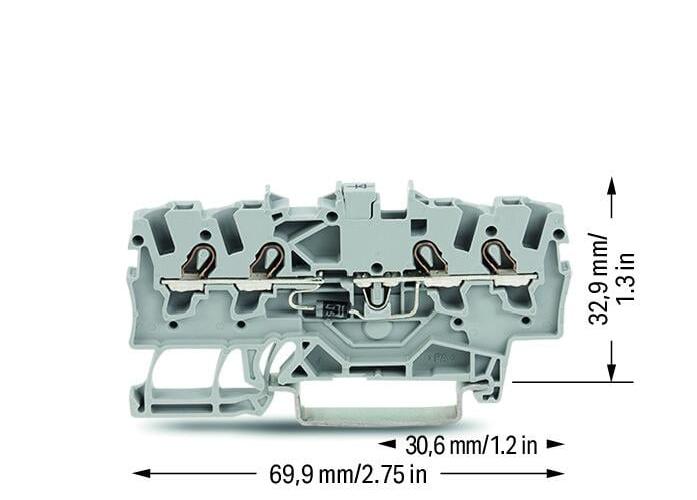

| Dimensions: | 2.752 in H x 0.205 in W x 1.295 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Push-in || Operating tool |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | CN |
| Depth: | 69.9 mm / 2.752 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Rated current: | 0.5 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 7.720 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454536336 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$9.70 / Each
Typical price:$10.51 / Each
Quantity:
- WAGO, 2002-1411/1000-411, Component Terminal Block, Operating Tool, 250 V, 0.5 A, 1 Pole, 22 to 12 AWG Wire, 0.39 to 0.47 in Wire Strip Length, DIN Rail Mounting, Push-In Connection, -35 to 85 deg C, Polyamide, Gray, 2.752 in H x 0.205 in W x 1.295 in D Dimensions
2002-1411/1000-411 Standards
RoHS CompliantSKU #2343201Part Number #2002-1411/1000-411UNSPSC39121410UPC04045454536336
