Part Number # 2002-1604
SKU # 2300763
Image Disclaimers Message
Brand: Wago
2002-1604

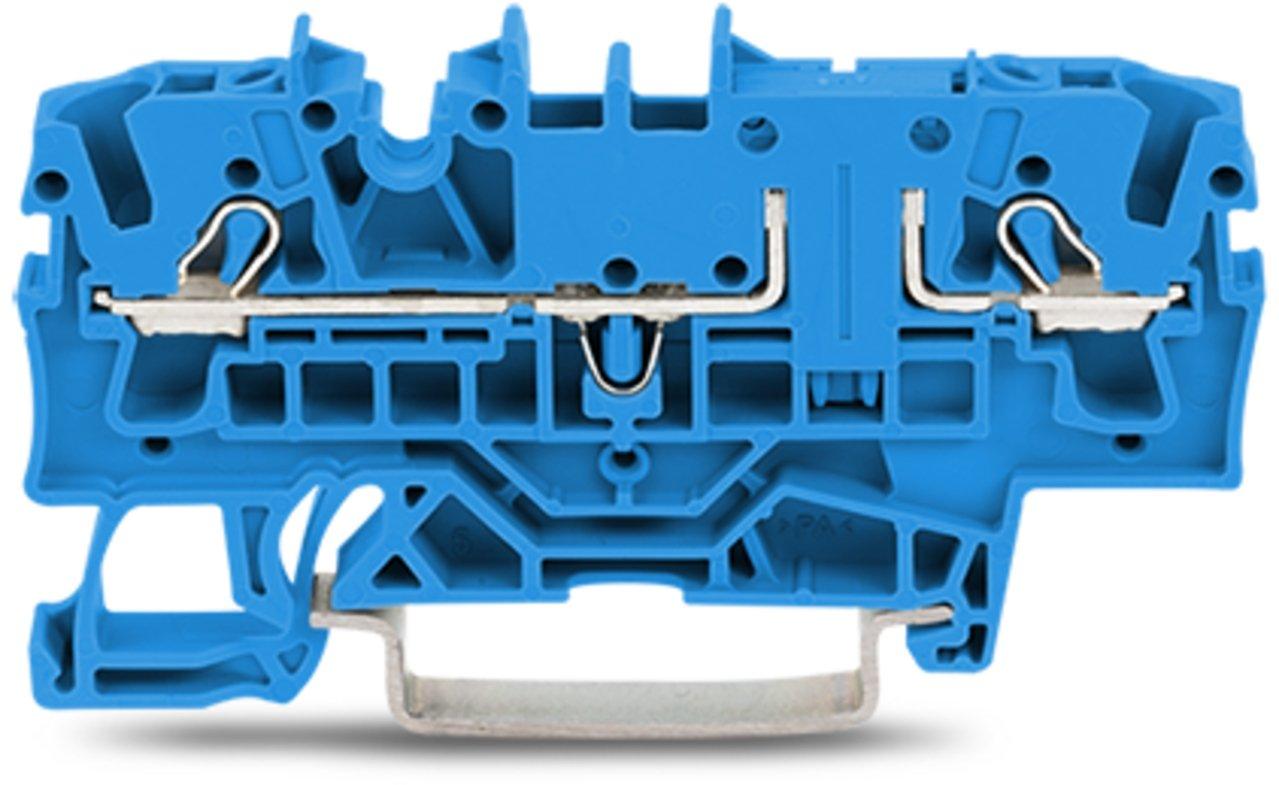

WAGO 2002-1604 TOPJOB S feedthrough terminal block
Part Number # 2002-1604
SKU # 2300763
$289.50 / 50Each
Typical price:$313.50 / Each
Wago 2002-1604 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-1604 |
| SKU #: | 2300763 |
| Amperage Rating: | 16 A |

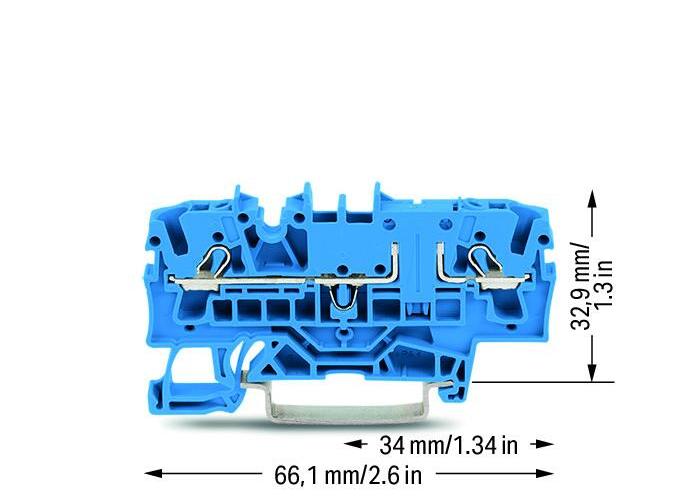

| Dimensions: | 2.602 in H x 0.205 in W x 1.555 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Blue |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CN |
| Depth: | 66.1 mm / 2.602 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Rated current: | 16 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 7.569 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454974664 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$289.50 / 50Each
Typical price:$313.50 / Each
Quantity:
- WAGO, 2002-1604, Conductor Terminal Block, Operating Tool, 400 V, 16 A, 1 Pole, 22 to 12 AWG Wire, 0.39 to 0.47 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, Polyamide, Blue, 2.602 in H x 0.205 in W x 1.555 in D Dimensions
2002-1604 Standards
CSA 22.2 No 158|ATEX: KIWA 17 ATEX 0030 U / IECEx: KIWA 17.0014U (Ex ec IIC Gc)|RoHS CompliantSKU #2300763Part Number #2002-1604UNSPSC39121410UPC04045454974664
