2002-1611/1000-867

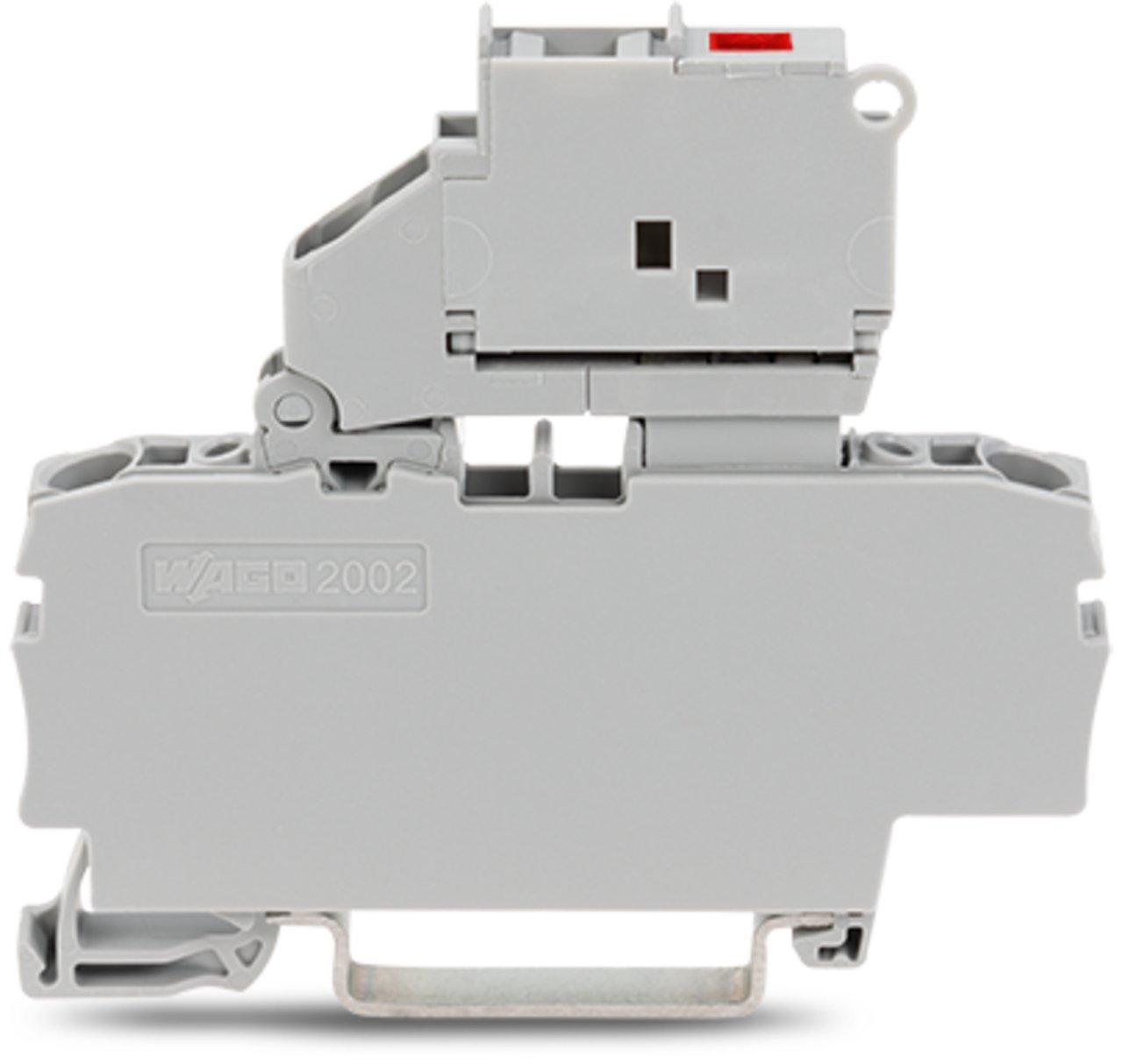

WAGO 2002-1611/1000-867 Terminal Blocks
Part Number # 2002-1611/1000-867
SKU # 2294867
Wago 2002-1611/1000-867 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-1611/1000-867 |
| SKU #: | 2294867 |
| Amperage Rating: | 6.3 A |

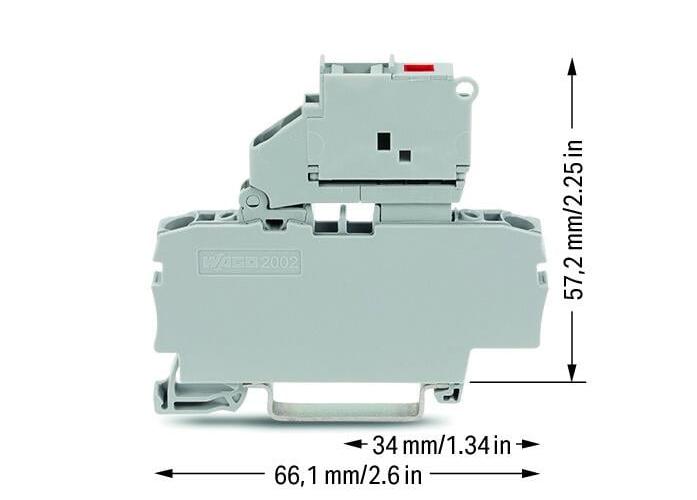

| Dimensions: | 2.602 in H x 0.244 in W x 2.252 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 66.1 mm / 2.602 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Rated current: | 6.3 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 13.601 g |
| Width: | 6.2 mm / 0.244 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143870474 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2002-1611/1000-867 Terminal Blocks
Brand: Wago
Part Number: 2002-1611/1000-867
Additional Description: WAGO-2002-1611/1000-867 2-CONDUCTOR FUSE TERMINAL BLOCK; WITH PIVOTING FUSE HOLDER; WITH END PLATE; FOR 5 X 20 MM MINIATURE METRIC FUSE; WITH BLOWN FUSE INDICATION BY LED; 120 V; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; GRAY 51239054
Catalog Description: 2-conductor fuse terminal block; with pivoting fuse holder; with end plate; for 5 x 20 mm miniature metric fuse; with blown fuse indication by LED; 120 V; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
2002-1611/1000-867 Standards
CSA 22.2 No 158|ATEX: KIWA 17 ATEX 0030 U / IECEx: KIWA 17.0014U (Ex ec IIC Gc)|RoHS CompliantSKU #2294867Part Number #2002-1611/1000-867UNSPSC39121410UPC04055143870474
