Part Number # 2002-1672
SKU # 2256059
Image Disclaimers Message
Brand: Wago
2002-1672

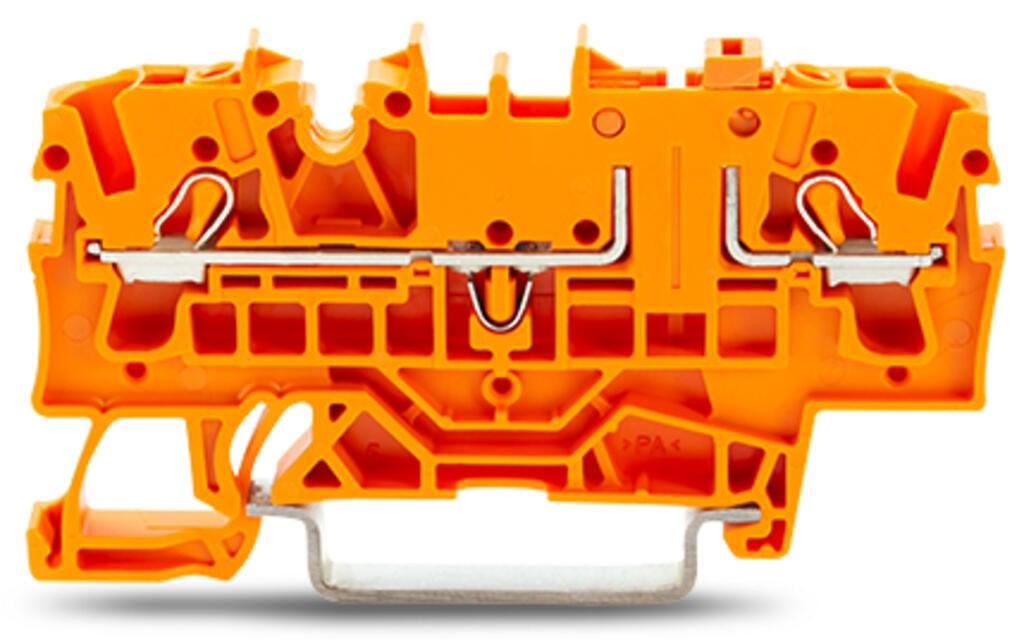

WAGO 2002-1672 Disconnect terminal block
Part Number # 2002-1672
SKU # 2256059
$6.00 / Each
Typical price:$6.50 / Each
Wago 2002-1672 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-1672 |
| SKU #: | 2256059 |
| Amperage Rating: | 16 A |
| Dimensions: | 2.602 in H x 0.205 in W x 1.295 in D |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Orange |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | CN |
| Depth: | 66.1 mm / 2.602 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Rated current: | 16 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 7.474 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454974800 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6.00 / Each
Typical price:$6.50 / Each
Quantity:
WAGO 2002-1672 Disconnect terminal block
Brand: Wago
Part Number: 2002-1672
Additional Description: WAGO-2002-1672 2-CONDUCTOR DISCONNECT/TEST TERMINAL BLOCK; WITH TEST OPTION; ORANGE DISCONNECT LINK; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; ORANGE 51222023
Catalog Description: 2-conductor disconnect/test terminal block; with test option; orange disconnect link; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; orange
2002-1672 Item Features
- Solid conductor 22 to 12 AWG, Solid conductor; push-in termination 18 to 12 AWG, Fine-stranded conductor 22 to 12 AWG, Fine-stranded conductor; with insulated ferrule 22 to 14 AWG, Fine-stranded conductor; with ferrule; push-in termination 18 to 14 AWG
2002-1672 Standards
CSA 22.2 No 158|ATEX: KIWA 17 ATEX 0030 U / IECEx: KIWA 17.0014U (Ex ec IIC Gc)|RoHS CompliantSKU #2256059Part Number #2002-1672UNSPSC39121410UPC04045454974800
