2002-1681

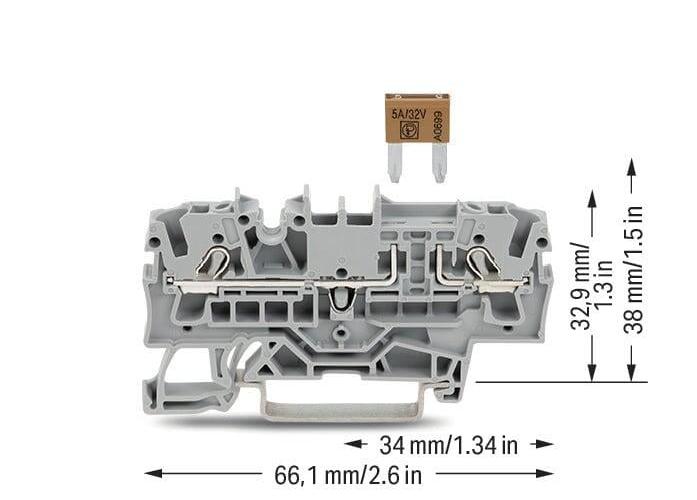

WAGO 2002-1681 TOPJOB S fuse terminal block
Part Number # 2002-1681
SKU # 2200938
$6.47 / Each
Typical price:$7.23 / Each
Wago 2002-1681 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-1681 |
| SKU #: | 2200938 |
| Amperage Rating: | 10 A |
| Dimensions: | 2.602 in H x 0.205 in W x 1.295 in D |
| Number of Poles: | 2 |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | CN |
| Depth: | 66.1 mm / 2.602 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Rated current: | 0.416666666666667 |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 7.049 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454974923 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6.47 / Each
Typical price:$7.23 / Each
Quantity:
WAGO 2002-1681 TOPJOB S fuse terminal block
Brand: Wago
Part Number: 2002-1681
Additional Description: WAGO-2002-1681 2-CONDUCTOR FUSE TERMINAL BLOCK; FOR MINI-AUTOMOTIVE BLADE-STYLE FUSES; PER DIN 7258-3F, ISO 8820-3; WITH TEST OPTION; WITHOUT BLOWN FUSE INDICATION; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; GRAY 51222038
Catalog Description: 2-conductor fuse terminal block; for mini-automotive blade-style fuses; per DIN 7258-3f, ISO 8820-3; with test option; without blown fuse indication; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
2002-1681 Standards
UL 1059|IEC/EN 60947-7-3|DIN 7258-3f|ISO 8820-3|RoHS CompliantSKU #2200938Part Number #2002-1681UNSPSC39121410UPC04045454974923
