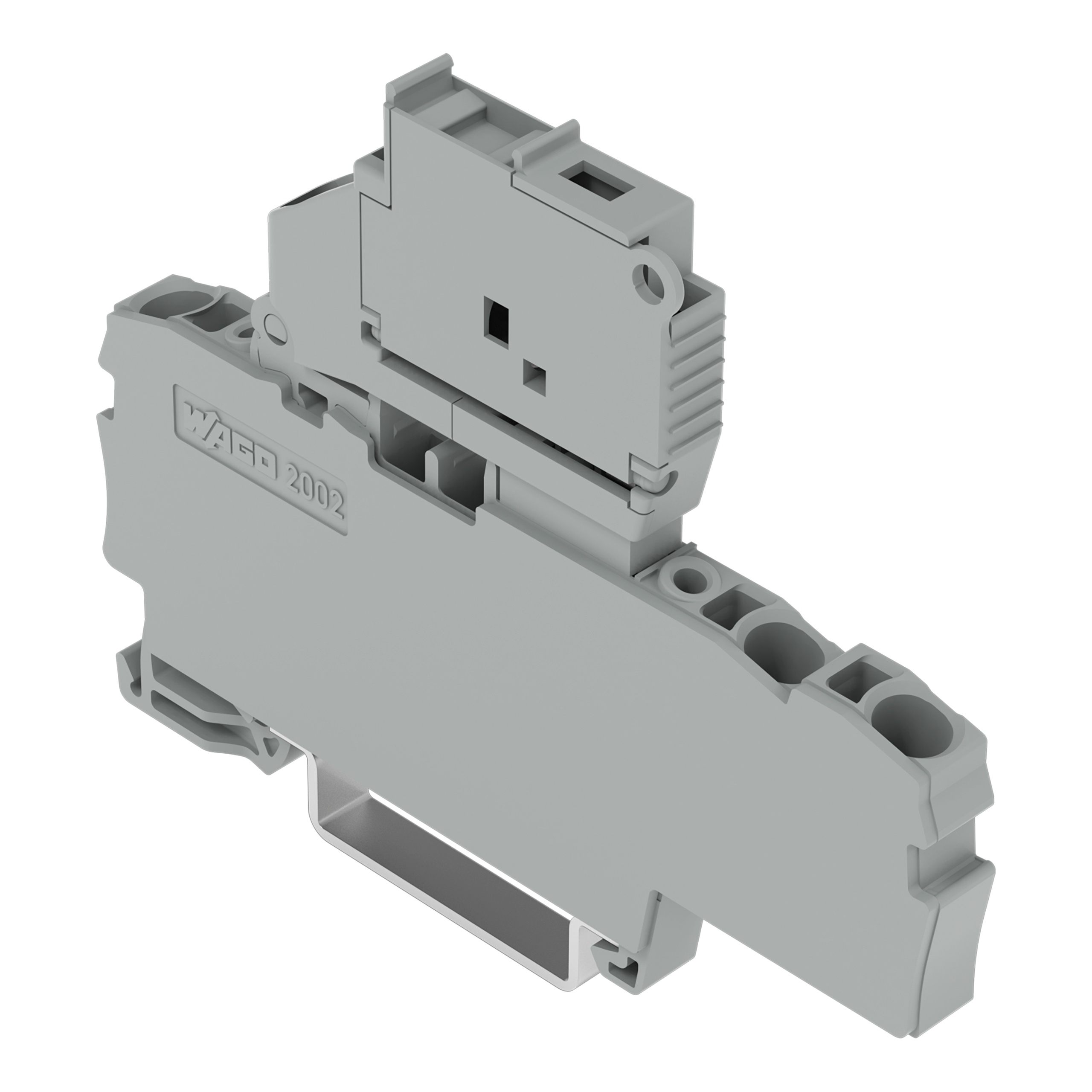

WAGO 2002-1711 2002 3-Conductor Fuse Terminal Block
Part Number # 2002-1711
SKU # 2408989
Wago 2002-1711 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-1711 |
| SKU #: | 2408989 |
| Amperage Rating: | 6.3 A |
| Dimensions: | 3.042 in H x 0.244 in W x 2.268 in D |
| Series: | 2002 |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Type: | 3-Conductor |
| Wire Size: | 22 to 12 AWG |
| Connection type: | Clamp |
| Country of origin: | CN |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143873352 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2002-1711 2002 3-Conductor Fuse Terminal Block
Brand: Wago
Part Number: 2002-1711
Additional Description: WAGO-2002-1711 3-CONDUCTOR FUSE TERMINAL BLOCK; WITH PIVOTING FUSE HOLDER; AND END PLATE; FOR 5 X 20 MM MINIATURE METRIC FUSE; WITHOUT BLOWN FUSE INDICATION; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM; PUSH-IN CAGE CLAMP; 2,50 MM; GRAY 60401903 250mm GRA
Catalog Description: 3-conductor fuse terminal block; with pivoting fuse holder; and end plate; for 5 x 20 mm miniature metric fuse; without blown fuse indication; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
2002-1711 Standards
RoHS CompliantSKU #2408989Part Number #2002-1711UNSPSC39121410UPC04055143873352
