Part Number # 2002-1781
SKU # 2411496
2002-1781

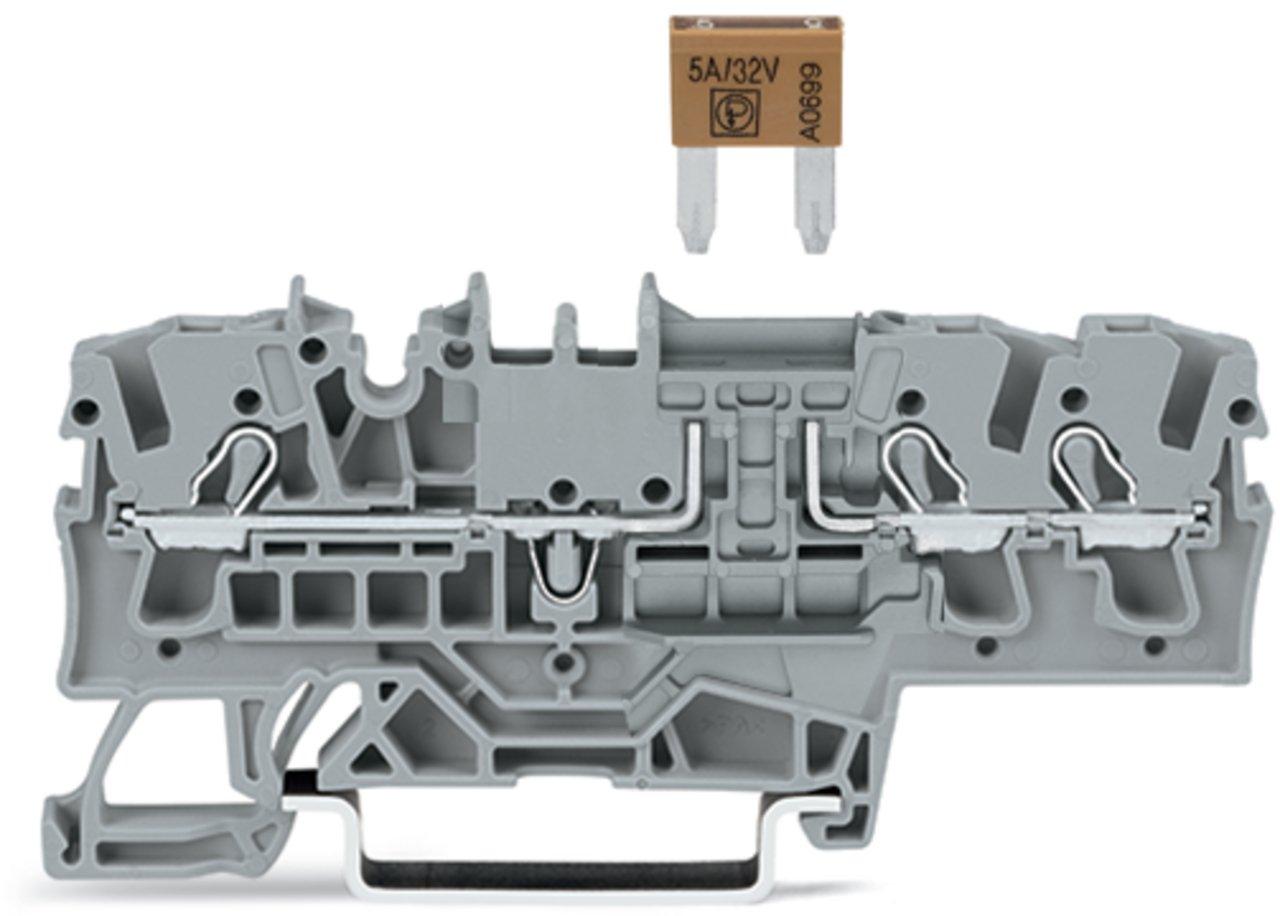

WAGO 2002-1781 2002 3-Conductor Fuse Terminal Block
Part Number # 2002-1781
SKU # 2411496
Wago 2002-1781 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-1781 |
| SKU #: | 2411496 |
| Amperage Rating: | 10 A |
| Dimensions: | 3.042 in H x 0.205 in W x 1.295 in D |
| Series: | 2002 |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Type: | 3-Conductor |
| Wire Size: | 22 to 12 AWG |
| Connection type: | Clamp |
| Country of origin: | CN |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821707592 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2002-1781 2002 3-Conductor Fuse Terminal Block
Brand: Wago
Part Number: 2002-1781
Additional Description: WAGO-2002-1781 3-CONDUCTOR FUSE TERMINAL BLOCK; FOR MINI-AUTOMOTIVE BLADE-STYLE FUSES; PER DIN 7258-3F, ISO 8820-3; WITH TEST OPTION; WITHOUT BLOWN FUSE INDICATION; 2.5 MM; PUSH-IN CAGE CLAMP; 2,50 MM; GRAY 20021781 250mm GRA
Catalog Description: 3-conductor fuse terminal block; for mini-automotive blade-style fuses; per DIN 7258-3f, ISO 8820-3; with test option; without blown fuse indication; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
2002-1781 Standards
RoHS Compliant|DIN 7258-3f|ISO 8820-3|UL94SKU #2411496Part Number #2002-1781UNSPSC39121410UPC04050821707592
Image provided may only be a representation of final product and may include optional equipment
