Part Number # 2002-1811
SKU # 2172769
Image Disclaimers Message
2002-1811

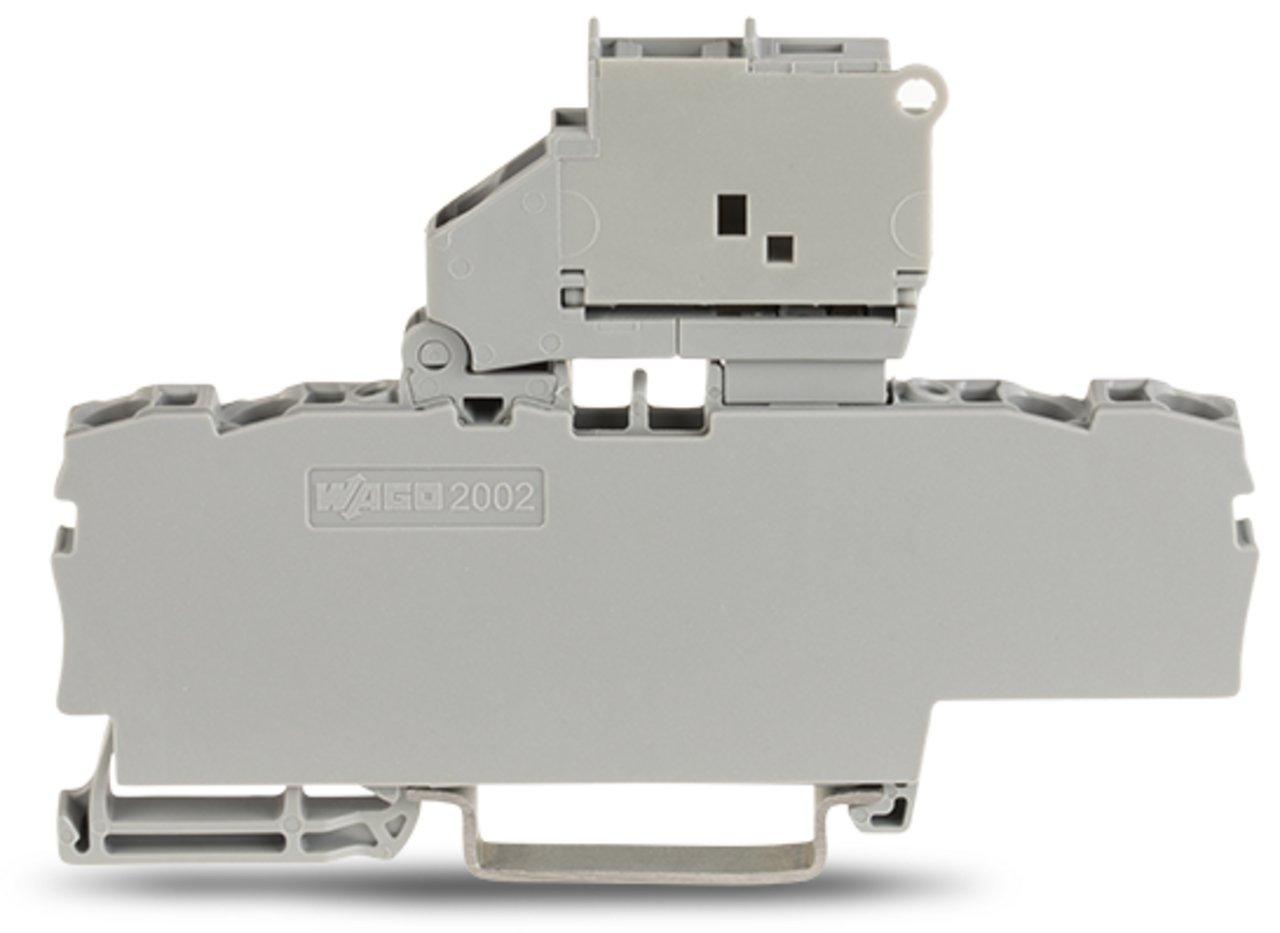

WAGO 2002-1811 TOPJOB S fuse disconnect terminal block
Part Number # 2002-1811
SKU # 2172769
$12.95 / Each
Typical price:$14.03 / Each
Wago 2002-1811 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-1811 |
| SKU #: | 2172769 |
| Amperage Rating: | 6.3 A |
| Dimensions: | 2.252 in H x 0.244 in W x 2.602 in D |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | CN |
| Depth: | 87.5 mm / 3.445 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide 6.6 |
| Mounting type: | Carrier Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Rated current: | 6.3 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 16.143 g |
| Width: | 6.2 mm / 0.244 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454974763 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$12.95 / Each
Typical price:$14.03 / Each
Quantity:
- WAGO Fuse Disconnect Terminal Block, 250 V AC, 6.3 A, 22 to 12 AWG Wire, 0.39 to 0.47 in Wire Strip Length, DIN Rail Mounting, Polyamide 6.6, Gray, 2.252 in H x 0.244 in W x 2.602 in D Dimensions
2002-1811 Application
For 5 x 20 mm miniature metric fuse2002-1811 Item Features
- Horizontal design
- Copper connectable conductor material
- Push-in actuation
- Front entry wiring
- 4 connection point
2002-1811 Standards
RoHS CompliantSKU #2172769Part Number #2002-1811UNSPSC39121410UPC04045454974763
