Part Number # 2002-1881
SKU # 2213052
Image Disclaimers Message
2002-1881

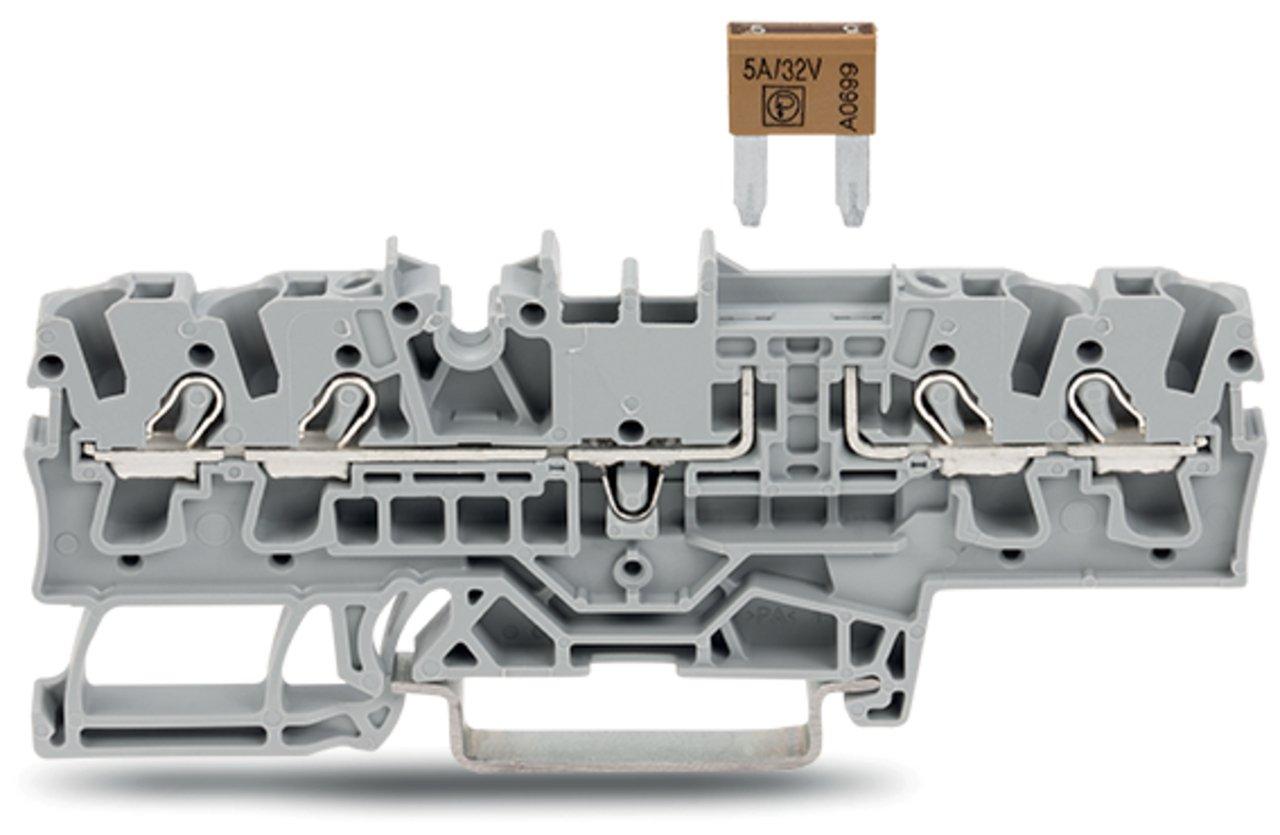

WAGO 2002-1881 TOPJOB S fuse terminal block
Part Number # 2002-1881
SKU # 2213052
$8.75 / Each
Typical price:$9.48 / Each
Wago 2002-1881 Key Features
Brand: | Wago |
---|---|
Part Number # : | 2002-1881 |
SKU #: | 2213052 |
Amperage Rating: | 10, 10 A |
Dimensions: | 1.295 in H x 0.205 in W x 3.445 in D |
Wire Size: | 22 to 12, 22 to 12 AWG |
Actuation type: | Push-in || Operating tool |
Approvals per: | UL 1059 |
Color: | Gray |
Connection technology: | Push-in CAGE CLAMP® |
Country of origin: | CN |
Depth: | 87.5 mm / 3.445 inch |
Insulation material: | Polyamide (PA66) |
Material: | Polyamide 6.6 |
Mounting type: | Carrier Rail, DIN Rail, DIN-35 rail |
Nominal cross-section: | 2.5 mm² |
Rated current: | 0.416666666666667 |
Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
Total number of connection points: | 4 |
Weight: | 9.303 g |
Width: | 5.2 mm / 0.205 inch |
Wiring type: | Front-entry wiring |
Manufacturer Name: | WAGO Corporation |
UNSPSC: | 39121410 |
UPC: | 04045454974886 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8.75 / Each
Typical price:$9.48 / Each
Quantity:
- WAGO Fuse Terminal Block, 400 V AC, 10 A, 22 to 12 AWG Wire, 0.39 to 0.47 in Wire Strip Length, DIN Rail Mounting, Polyamide 6.6, Gray, 1.295 in H x 0.205 in W x 3.445 in D Dimensions
2002-1881 Application
For blade-style fuses2002-1881 Item Features
- Horizontal design
- Copper connectable conductor material
- Push-in actuation
- Front entry wiring
- 4 connection point
2002-1881 Standards
RoHS CompliantSKU #2213052Part Number #2002-1881UNSPSC39121410UPC04045454974886
