Part Number # 2002-1971
SKU # 2390640
2002-1971
WAGO 2002-1971 Terminal Blocks
Part Number # 2002-1971
SKU # 2390640
$6.17 / Each
Typical price:$6.68 / Each
Wago 2002-1971 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-1971 |
| SKU #: | 2390640 |
| Amperage Rating: | 16 A |

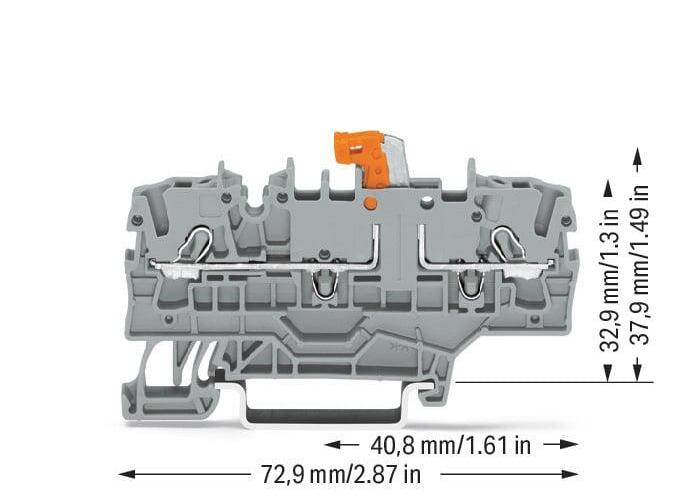

| Dimensions: | 2.87 in H x 0.205 in W x 1.295 in D |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Connection type: | Push-In |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143871884 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6.17 / Each
Typical price:$6.68 / Each
Quantity:
WAGO 2002-1971 Terminal Blocks
Brand: Wago
Part Number: 2002-1971
Additional Description: WAGO-2002-1971 2-CONDUCTOR DISCONNECT/TEST
Catalog Description: 2-conductor disconnect/test terminal block; with additional jumper position; orange disconnect link; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
2002-1971 Item Features
- Solid conductor 22 to 12 AWG, Solid conductor; push-in termination 18 to 12 AWG, Fine-stranded conductor 22 to 12 AWG, Fine-stranded conductor; with insulated ferrule 22 to 14 AWG, Fine-stranded conductor; with ferrule; push-in termination 18 to 14 AWG
2002-1971 Standards
CSA 22.2 No 158|ATEX: KIWA 17 ATEX 0030 U / IECEx: KIWA 17.0014U (Ex ec IIC Gc)|RoHS CompliantSKU #2390640Part Number #2002-1971UNSPSC39121410UPC04055143871884
Image provided may only be a representation of final product and may include optional equipment
