Part Number # 2002-2206
SKU # 2389920
2002-2206

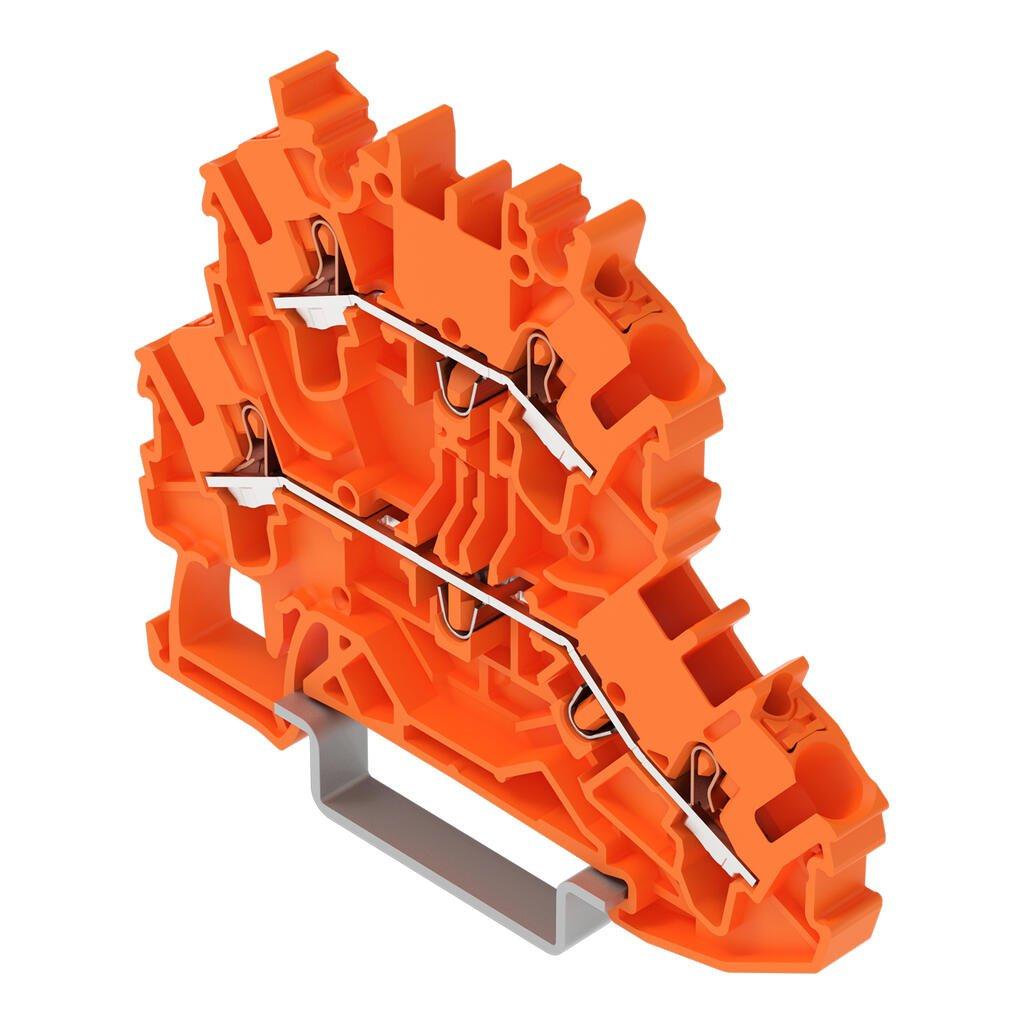

WAGO 2002-2206 Double-deck terminal block
Part Number # 2002-2206
SKU # 2389920
Wago 2002-2206 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-2206 |
| SKU #: | 2389920 |
| Amperage Rating: | 24 A |
| Dimensions: | 2.744 in H x 0.205 in W x 2.744 in D |
| Number of Poles: | 2 |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Connection type: | Clamp |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143550918 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2002-2206 Double-deck terminal block
Brand: Wago
Part Number: 2002-2206
Additional Description: WAGO-2002-2206 DOUBLE-DECK TERMINAL BLOCK; THROUGH/THROUGH TERMINAL BLOCK; N/L; WITHOUT MARKER CARRIER; SUITABLE FOR EX E II APPLICATIONS; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM; PUSH-IN CAGE CLAMP; 2,50 MM; ORANGE 60322456 2-CONDUCTOR THROUGH/THROUGH (N/L) RAIL MOUNT 6.2MM WIDE ORANGE
Catalog Description: Double-deck terminal block; Through/through terminal block; N/L; without marker carrier; suitable for Ex e II applications; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; orange
2002-2206 Application
Suitable for Ex e II applications2002-2206 Standards
CSA 22.2 No 158|ATEX: PTB 03 ATEX 1162 U / IECEx: PTB 03.0004U (Ex eb IIC Gb)|RoHS CompliantSKU #2389920Part Number #2002-2206UNSPSC39121410UPC04055143550918
Image provided may only be a representation of final product and may include optional equipment
