Brand: Wago
2002-2207

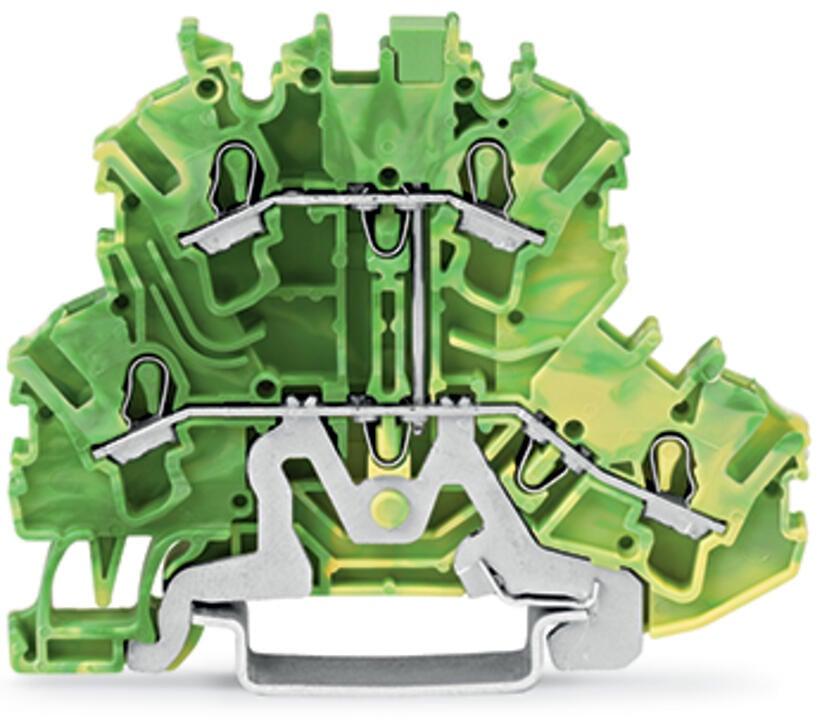

WAGO 2002-2207 TOPJOB S double-deck ground terminal block
Part Number # 2002-2207
SKU # 2235668
$9.97 / Each
Typical price:$10.80 / Each
92 In Stock
Est. delivery Jun 19 - Jun 23
Wago 2002-2207 Key Features
Brand: Wago
Part Number # 2002-2207
SKU #2235668
Dimensions: 2.744 in H x 0.205 in W x 2.035 in D
Number of Poles: 1
Temperature Rating (Degrees F): -35 to 85 deg C
Type: Operating Tool
Wire Size: 22 to 12 AWG
Actuation type: Push-in || Operating tool
Color: Green-yellow, Green/Yellow
Connection technology: Push-in CAGE CLAMP®
Connection type: Push-In
Country of origin: DE
Depth: 69.7 mm / 2.744 inch
Insulation material: Polyamide (PA66)
Material: Polyamide
Mounting type: 35 mm DIN Rail, DIN Rail, DIN-35 rail
Nominal cross-section: 2.5 mm²
Potential marking: PE
Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
Total number of connection points: 4
Weight: 13.523 g
Width: 5.2 mm / 0.205 inch
Wiring type: Front-entry wiring
Manufacturer Name: WAGO Corporation
UNSPSC: 39121410
UPC: 04044918691147
$9.97 / Each
Typical price:$10.80 / Each
SKU # 2235668
Part Number # 2002-2207
- WAGO, 2002-2207, Ground Terminal Block, Operating Tool, 1 Pole, 22 to 12 AWG Wire, 0.39 to 0.47 in Wire Strip Length, DIN Rail Mounting, Push-In Connection, -35 to 85 deg C, Polyamide, Green/Yellow, 2.744 in H x 0.205 in W x 2.035 in D Dimensions
2002-2207 Application
Suitable for Ex e II applications2002-2207 Standards
ATEX: PTB 03 ATEX 1162 U / IECEx: PTB 03.0004U (Ex eb IIC Gb)|RoHS CompliantSKU #2235668Part Number #2002-2207UNSPSC39121410UPC04044918691147
