Part Number # 2002-2217
SKU # 2319352
Image Disclaimers Message
Brand: Wago
2002-2217

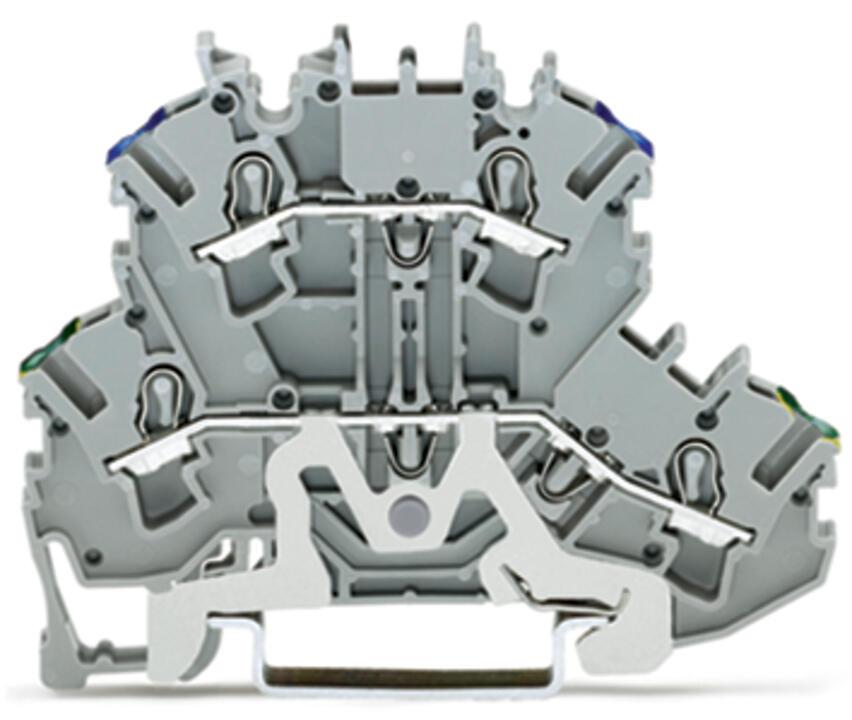

WAGO 2002-2217 TOPJOB S double-deck terminal block
Part Number # 2002-2217
SKU # 2319352
$8.16 / Each
Typical price:$8.84 / Each
Wago 2002-2217 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-2217 |
| SKU #: | 2319352 |
| Amperage Rating: | 24 A |
| Dimensions: | 2.744 in H x 0.205 in W x 2.035 in D |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 69.7 mm / 2.744 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Number of connection points: | 2 |
| Number of connection points (connection type): | 2 |
| Potential marking: | PE/N |
| Rated current: | 24 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 12.890 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918691123 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8.16 / Each
Typical price:$8.84 / Each
Quantity:
- WAGO, 2002-2217, Through Terminal Block, Operating Tool, 500 V, 24 A, 2 Pole, 22 to 12 AWG Wire, 0.39 to 0.47 in Wire Strip Length, DIN Rail Mounting, Push-In Connection, -35 to 85 deg C, Polyamide, Gray, 2.744 in H x 0.205 in W x 2.035 in D Dimensions
2002-2217 Application
Suitable for Ex e II applications2002-2217 Standards
CSA 22.2 No 158|ATEX: PTB 03 ATEX 1162 U / IECEx: PTB 03.0004U (Ex eb IIC Gb)|RoHS CompliantSKU #2319352Part Number #2002-2217UNSPSC39121410UPC04044918691123
