Part Number # 2002-2232
SKU # 2417659
2002-2232

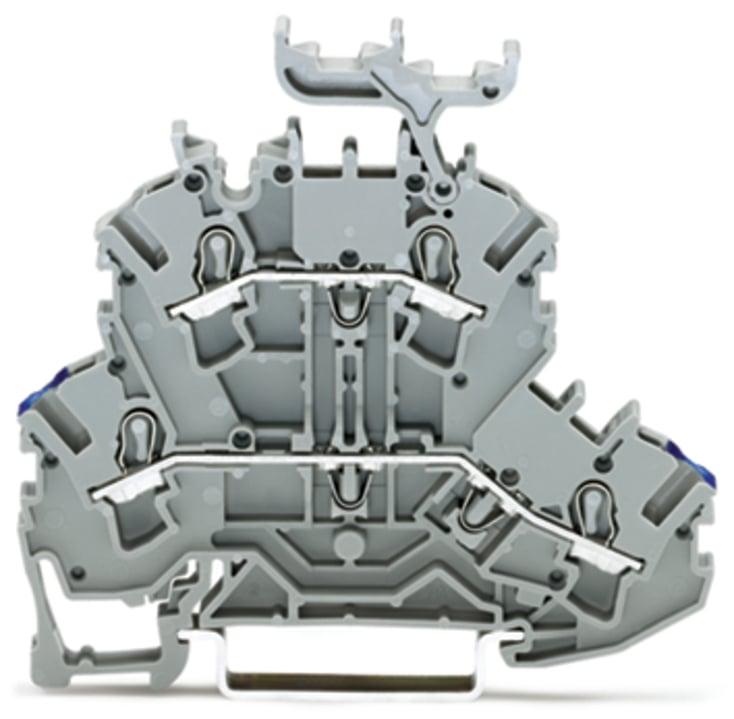

WAGO 2002-2232 2002 Double Deck Terminal Block
Part Number # 2002-2232
SKU # 2417659
Wago 2002-2232 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-2232 |
| SKU #: | 2417659 |
| Amperage Rating: | 24 A |
| Dimensions: | 2.744 in H x 0.205 in W x 2.433 in D |
| Series: | 2002 |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Terminal Type: | Through |
| Type: | Double Deck |
| Wire Size: | 22 to 12 AWG |
| Connection type: | Push-In |
| Country of origin: | DE |
| Material: | Polyamide 6.6 |
| Mounting type: | 35 mm DIN Rail, DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918964791 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2002-2232 2002 Double Deck Terminal Block
Brand: Wago
Part Number: 2002-2232
Additional Description: WAGO-2002-2232 DOUBLE-DECK TERMINAL BLOCK; 20022232 N/L; WITH MARKER CARRIER; SUITABLE FOR EX E II APPLICATIONS; BLUE CONDUCTOR ENTRY LOWER DECK; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM; PUSH-IN CAGE CLAMP; 2,50 MM; GRAY
Catalog Description: Double-deck terminal block; Through/through terminal block; N/L; with marker carrier; suitable for Ex e II applications; Blue conductor entry lower deck; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
2002-2232 Application
Suitable for Ex e II Applications2002-2232 Standards
RoHS CompliantSKU #2417659Part Number #2002-2232UNSPSC39121410UPC04044918964791
Image provided may only be a representation of final product and may include optional equipment
