2002-2238

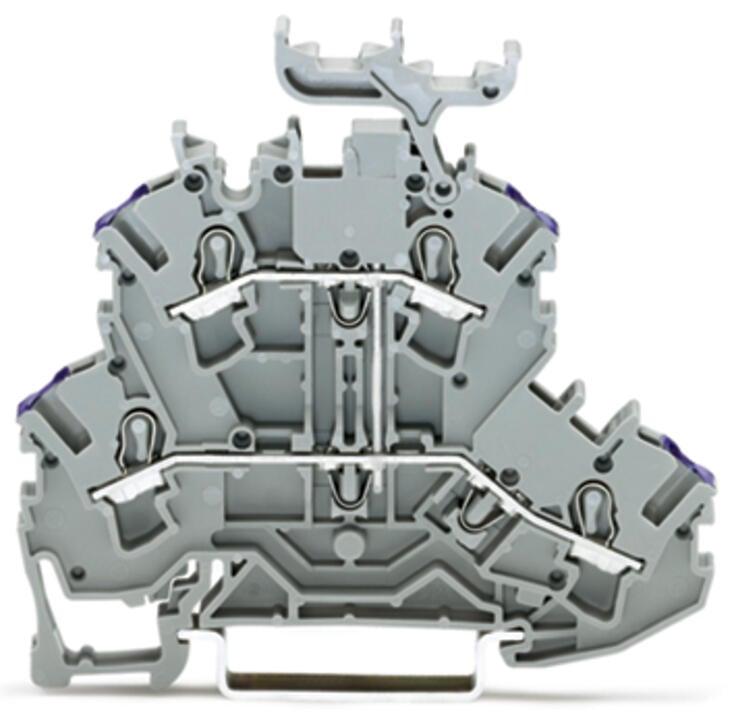

WAGO 2002-2238 TOPJOB S double-deck terminal block
Part Number # 2002-2238
SKU # 2255660
Wago 2002-2238 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-2238 |
| SKU #: | 2255660 |
| Amperage Rating: | 24 A |
| Dimensions: | 2.744 in H x 0.205 in W x 2.433 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 69.7 mm / 2.744 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Potential marking: | L |
| Rated current: | 24 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 11.166 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918989824 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2002-2238 TOPJOB S double-deck terminal block
Brand: Wago
Part Number: 2002-2238
Additional Description: WAGO-2002-2238 DOUBLE-DECK TERMINAL BLOCK; 4-CONDUCTOR THROUGH TERMINAL BLOCK; L; WITH MARKER CARRIER; SUITABLE FOR EX E II APPLICATIONS; INTERNAL COMMONING; CONDUCTOR ENTRY WITH VIOLET MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; GRAY AWG 20022238
Catalog Description: Double-deck terminal block; 4-conductor through terminal block; L; with marker carrier; suitable for Ex e II applications; internal commoning; conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
2002-2238 Application
Suitable for Ex e II applications2002-2238 Standards
CSA 22.2 No 158|ATEX: PTB 03 ATEX 1162 U / IECEx: PTB 03.0004U (Ex eb IIC Gb)|RoHS CompliantSKU #2255660Part Number #2002-2238UNSPSC39121410UPC04044918989824
