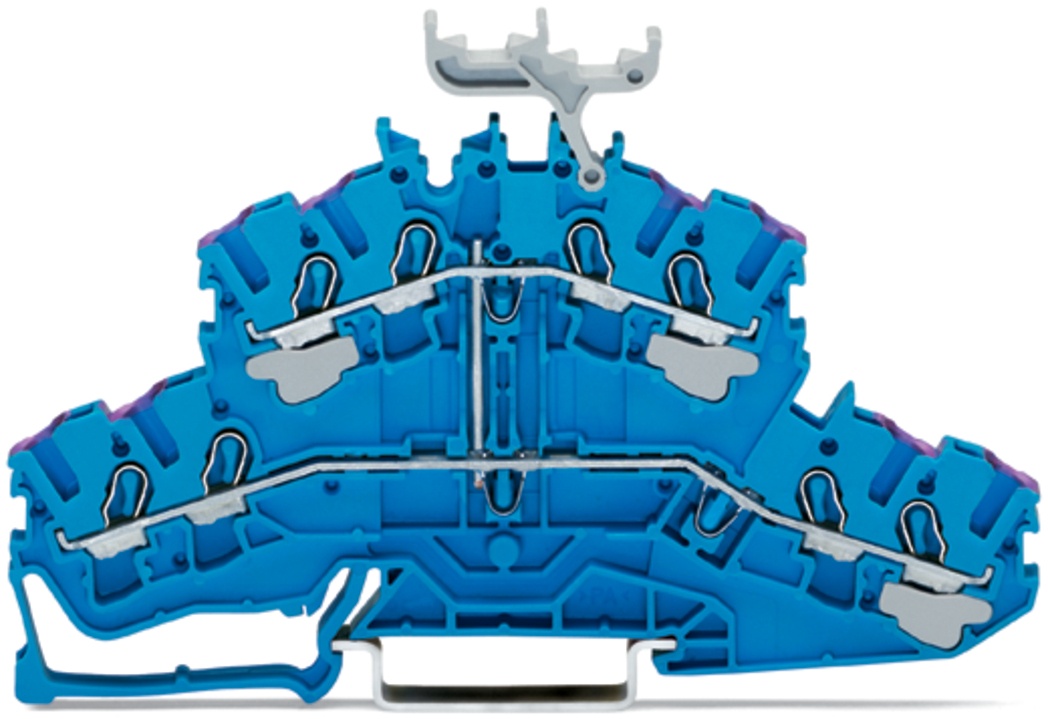

WAGO 2002-2409 TOPJOB S double-deck terminal block
Part Number # 2002-2409
SKU # 2181465
Wago 2002-2409 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-2409 |
| SKU #: | 2181465 |
| Series: | 2002 |
| Suitable For Use With: | Terminal Block |
| Type: | 4-Conductor |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Blue |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | CN |
| Depth: | 105.1 mm / 4.138 inch |
| Height: | 4.13 in |
| Insulation material: | Polyamide (PA66) |
| Length: | 2.05 in |
| Material: | Polyamide |
| Mounting type: | DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Potential marking: | N |
| Rated current: | 24 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 8 |
| Weight: | 16.142 g |
| Width: | 0.20 in, 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821144830 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2002-2409 TOPJOB S double-deck terminal block
Brand: Wago
Part Number: 2002-2409
Additional Description: WAGO-2002-2409 4-CONDUCTOR DOUBLE DECK TERMINAL BLOCK; 8-CONDUCTOR THROUGH TERMINAL BLOCK; N; WITHOUT MARKER CARRIER; SUITABLE FOR EX I APPLICATIONS; INTERNAL COMMONING; CONDUCTOR ENTRY WITH VIOLET MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; BLUE 51233806
Catalog Description: 4-conductor double deck terminal block; 8-conductor through terminal block; N; without marker carrier; suitable for Ex i applications; internal commoning; conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; blue
2002-2409 Application
Suitable for Ex i applications2002-2409 Standards
RoHS CompliantSKU #2181465Part Number #2002-2409UNSPSC39121410UPC04050821144830
