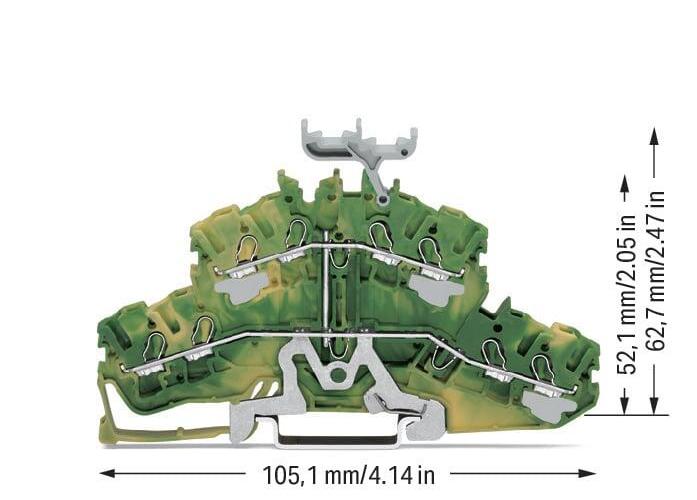

WAGO 2002-2437 TOPJOB S double-deck ground terminal block
Part Number # 2002-2437
SKU # 2304325
Wago 2002-2437 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-2437 |
| SKU #: | 2304325 |
| Dimensions: | 4.138 in H x 0.205 in W x 2.469 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Push-in || Operating tool |
| Color: | Green-yellow, Green/Yellow |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | CN |
| Depth: | 105.1 mm / 4.138 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Potential marking: | PE |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 8 |
| Weight: | 19.390 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821144755 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2002-2437 TOPJOB S double-deck ground terminal block
Brand: Wago
Part Number: 2002-2437
Additional Description: WAGO-2002-2437 4-CONDUCTOR DOUBLE DECK TERMINAL BLOCK; 8-CONDUCTOR GROUND TERMINAL BLOCK; PE; WITH MARKER CARRIER; INTERNAL COMMONING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; GREEN-YELLOW 51233798
Catalog Description: 4-conductor double deck terminal block; 8-conductor ground terminal block; 2.5 mm²; PE; suitable for Ex e II applications; with marker carrier; internal commoning; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; green-yellow
2002-2437 Application
Suitable for Ex e II applications2002-2437 Standards
ATEX: PTB 03 ATEX 1162 U / IECEx: PTB 03.0004U (Ex eb IIC Gb)|RoHS CompliantSKU #2304325Part Number #2002-2437UNSPSC39121410UPC04050821144755
