2002-2438

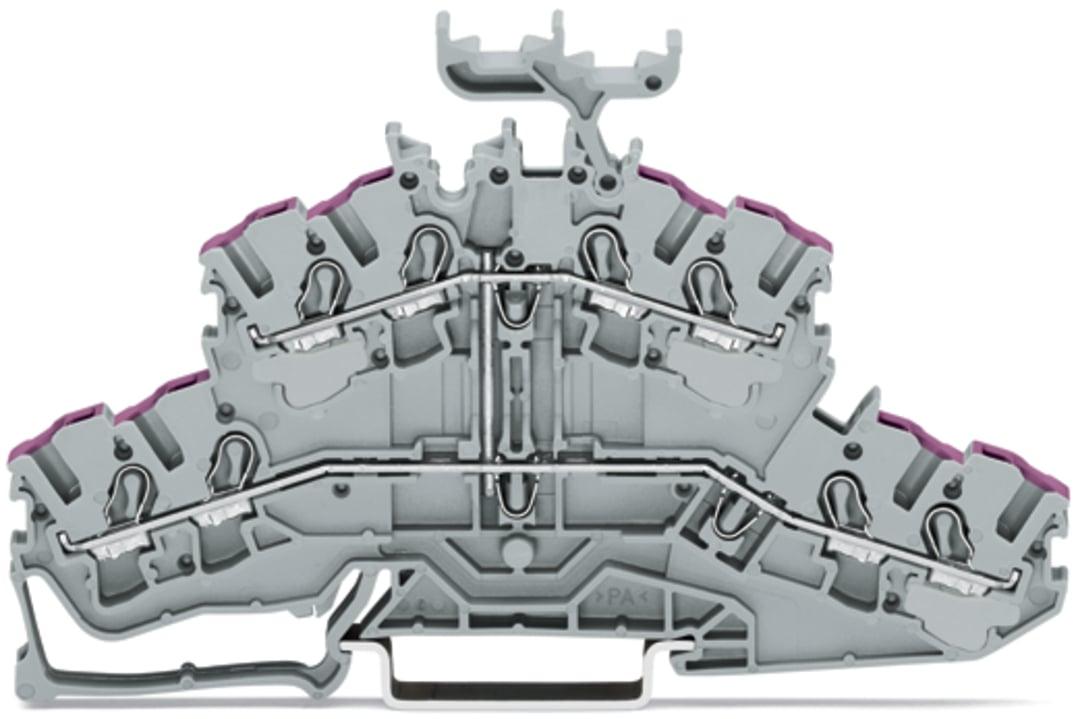

WAGO 2002-2438 TOPJOB S double-deck terminal block
Part Number # 2002-2438
SKU # 2259105
Wago 2002-2438 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-2438 |
| SKU #: | 2259105 |
| Amperage Rating: | 24 A |
| Dimensions: | 4.138 in H x 0.205 in W x 2.469 in D |
| Series: | 2002 |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Terminal Type: | Through |
| Type: | Double Deck |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | CN |
| Depth: | 105.1 mm / 4.138 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide 6.6 |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Potential marking: | L |
| Rated current: | 24 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 8 |
| Weight: | 16.592 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821144779 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2002-2438 TOPJOB S double-deck terminal block
Brand: Wago
Part Number: 2002-2438
Additional Description: WAGO-2002-2438 4-CONDUCTOR DOUBLE DECK TERMINAL BLOCK; 8-CONDUCTOR THROUGH TERMINAL BLOCK; L; WITH MARKER CARRIER; INTERNAL COMMONING; CONDUCTOR ENTRY WITH VIOLET MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM; PUSH-IN CAGE CLAMP; 2,50 MM; GRAY 51233800 BLOCK; 8-CONDUCTOR THROUGH TERMINAL BLOCK; L; WITH MARKER CARRIER; INTERNAL COMMONING; CONDUCTOR ENTRY WITH VIOLET MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; GRAY 51233800
Catalog Description: 4-conductor double deck terminal block; 8-conductor through terminal block; L; with marker carrier; internal commoning; conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
2002-2438 Standards
RoHS Compliant|UL94SKU #2259105Part Number #2002-2438UNSPSC39121410UPC04050821144779
