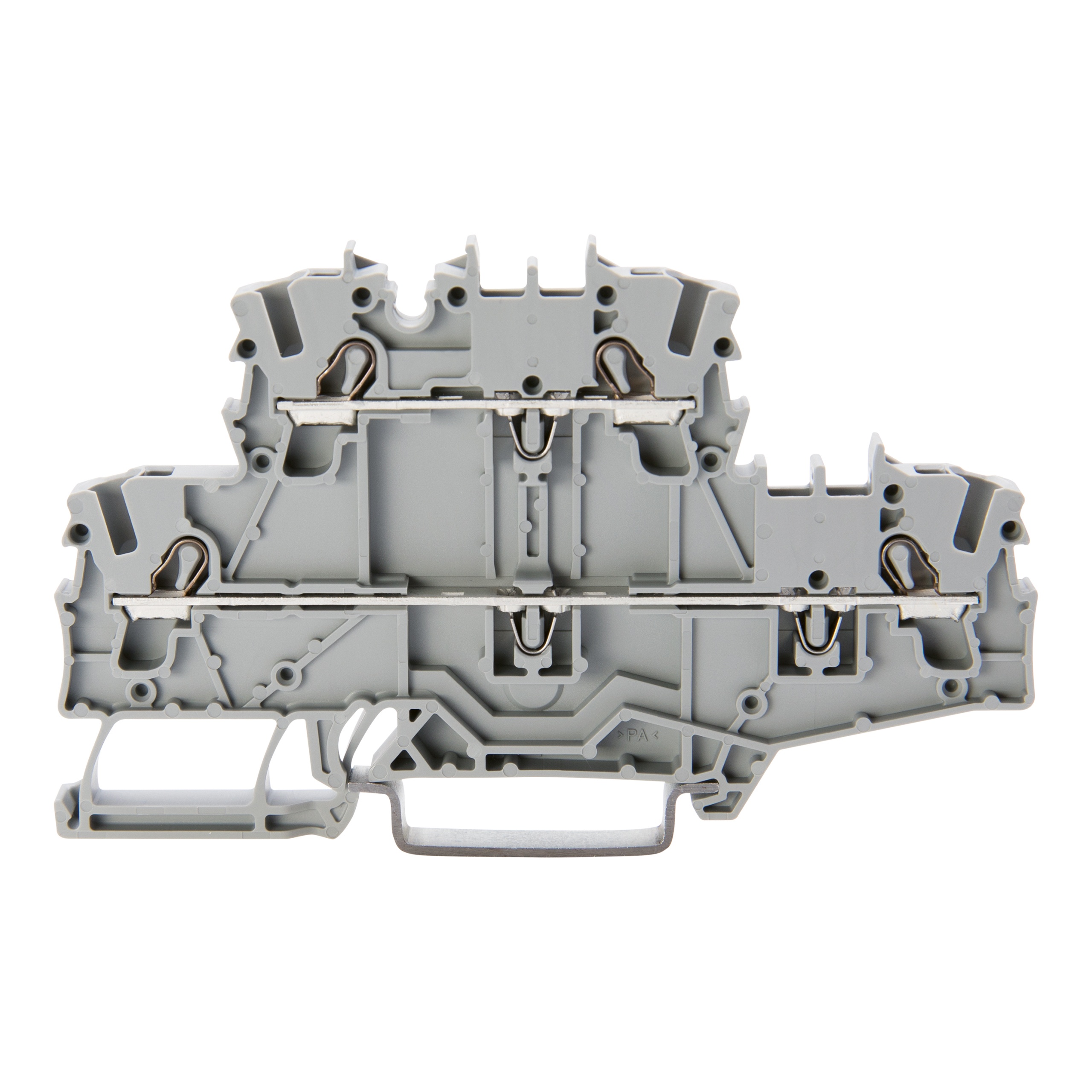

WAGO 2002-2701 TOPJOB S double-deck terminal block
Part Number # 2002-2701
SKU # 2375408
$4.02 / Each
Typical price:$4.35 / Each
Wago 2002-2701 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-2701 |
| SKU #: | 2375408 |
| Series: | 2002 |
| Suitable For Use With: | Terminal Block |
| Type: | Double-Deck |
| Actuation type: | Push-in || Operating tool |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 92.5 mm / 3.642 inch |
| Height: | 3.64 in |
| Insulation material: | Polyamide (PA66) |
| Length: | 2.03 in |
| Material: | Polyamide |
| Mounting type: | DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Number of connection points: | 2 |
| Number of connection points (connection type): | 2 |
| Potential marking: | L/L |
| Rated current: | 24 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 12.514 g |
| Width: | 0.20 in, 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143622493 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4.02 / Each
Typical price:$4.35 / Each
Quantity:
WAGO 2002-2701 TOPJOB S double-deck terminal block
Brand: Wago
Part Number: 2002-2701
Additional Description: WAGO-2002-2701 DOUBLE-DECK TERMINAL BLOCK; THROUGH/THROUGH TERMINAL BLOCK; L/L; WITHOUT MARKER CARRIER; SUITABLE FOR EX E II APPLICATIONS; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; GRAY 60340099 BLOCK, GRAY
Catalog Description: Double-deck terminal block; Through/through terminal block; L/L; without marker carrier; suitable for Ex e II applications; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
2002-2701 Application
Suitable for Ex e II applications2002-2701 Standards
RoHS CompliantSKU #2375408Part Number #2002-2701UNSPSC39121410UPC04055143622493
