Part Number # 2002-2707
SKU # 2428834
2002-2707
WAGO 2002-2707 Terminal Blocks
Part Number # 2002-2707
SKU # 2428834
Wago 2002-2707 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-2707 |
| SKU #: | 2428834 |

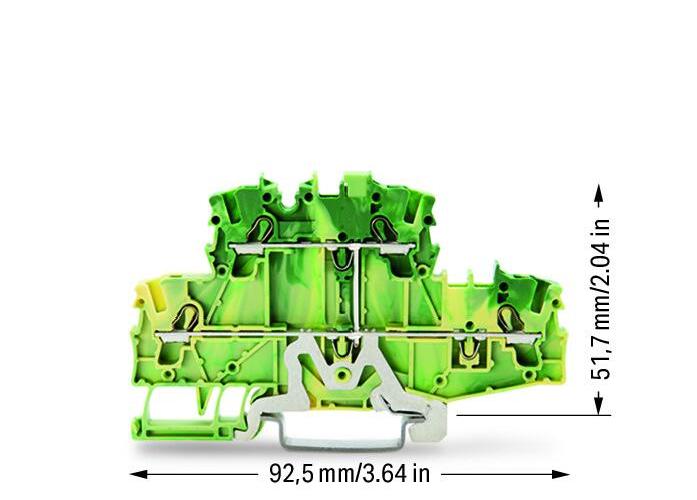

| Dimensions: | 3.642 in H x 0.205 in W x 2.035 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Connection type: | Push-In |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143622547 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2002-2707 Terminal Blocks
Brand: Wago
Part Number: 2002-2707
Additional Description: WAGO-2002-2707 DOUBLE-DECK TERMINAL BLOCK; 4-CONDUCTOR GROUND TERMINAL BLOCK; PE; WITHOUT MARKER CARRIER; SUITABLE FOR EX E II APPLICATIONS; INTERNAL COMMONING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; GREEN-YELLOW 60340109
Catalog Description: Double-deck terminal block; 4-conductor ground terminal block; 2.5 mm²; PE; suitable for Ex e II applications; without marker carrier; internal commoning; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; green-yellow
2002-2707 Application
Suitable for Ex e II applications2002-2707 Standards
IEC/EN 60947-7-2|RoHS CompliantSKU #2428834Part Number #2002-2707UNSPSC39121410UPC04055143622547
Image provided may only be a representation of final product and may include optional equipment
