Part Number # 2002-2959
SKU # 2302776
Image provided may only be a representation of
final product and may include optional equipment
2002-2959

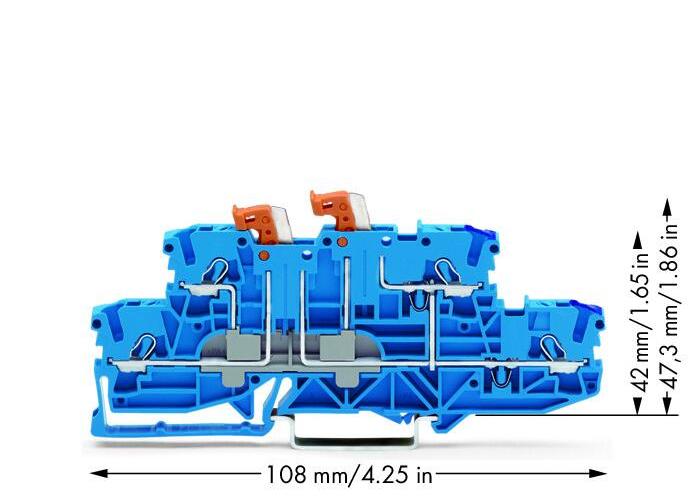

WAGO 2002-2959 Double-deck double-disconnect terminal block
Part Number # 2002-2959
SKU # 2302776
Wago 2002-2959 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2002-2959 |
| SKU #: | 2302776 |
| Amperage Rating: | 16 A |
| Dimensions: | 4.252 in H x 0.205 in W x 1.654 in D |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Push-in || Operating tool |
| Approvals per: | UL 1059 |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | CN |
| Depth: | 108 mm / 4.252 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Potential marking: | N/N |
| Rated current: | 16 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 17.666 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821006787 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2002-2959 Double-deck double-disconnect terminal block
Brand: Wago
Part Number: 2002-2959
Additional Description: WAGO-2002-2959 DOUBLE-DECK, DOUBLE-DISCONNECT TERMINAL BLOCK; WITH 2 PIVOTING KNIFE DISCONNECTS; LOWER AND UPPER DECKS INTERNALLY COMMONED ON RIGHT SIDE; CONDUCTOR ENTRY WITH VIOLET MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; BLUE 51224498
Catalog Description: Double-deck, double-disconnect terminal block; with 2 pivoting knife disconnects; lower and upper decks internally commoned on right side; conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; blue
2002-2959 Item Features
- Solid conductor 22 to 12 AWG, Solid conductor; push-in termination 18 to 12 AWG, Fine-stranded conductor 22 to 12 AWG, Fine-stranded conductor; with insulated ferrule 22 to 14 AWG, Fine-stranded conductor; with ferrule; push-in termination 18 to 14 AWG
2002-2959 Standards
CSA 22.2 No 158|ATEX: KIWA 17 ATEX 0030 U / IECEx: KIWA 17.0014U (Ex ec IIC Gc)|RoHS CompliantSKU #2302776Part Number #2002-2959UNSPSC39121410UPC04050821006787
